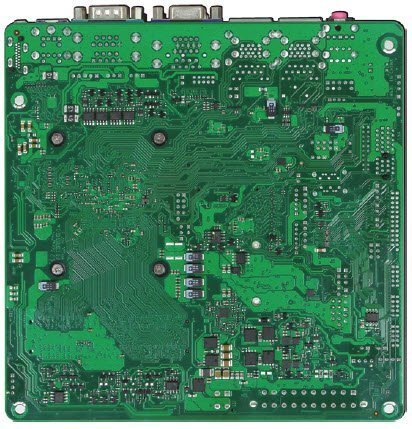

WADE-8172

Intel® Celeron® Processor N3350 Based Mini-ITX Board with VGA, HDMI, LVDS, Dual GbE, USB 3.0, SATA III, Mini PCIe, M.2

产品特色

  • Intel® Apollo Lake SoC Processor
  • Supports Dual Channel DDR3L 1333/1600MHz, 2 x SO-DIMM, up to 8GB system memory
  • 1 x HDMI, 1 x D-Sub, 1 x Dual Channel 24-bit LVDS
  • 4 xUSB 3.0, 4 x USB 2.0, 1 x SATA3 port
  • Support one PCIe x1(Gen2), one M.2 Key E 2230 with PCIe x1 and USB(Shared) for Wireless, one M.2 Key M 2260/2280 with SATA signal for SSD and one full/half size Mini PCIe socket with PCIe x1 and USB(Shared)
型录下载
业务服务需求
产品支持服务

产品描述

WADE-8172 is based on Intel® Celeron® processor N3350. With dual-channel DDR3L memory and rich I/O sets, WADE-8172 empowers energy-efficient solutions for point-of-sale (POS) and industrial automation applications.

规格

Specifications
MODEL WADE-8172
Form Factor Mini-ITX
CPU Intel® Celeron® processor N3350 in FCBGA1296 package
Chipset N/A
BIOS AMI UEFI
Memory up to 8 GB DDR3L 1600/1333 MHz memory (non-ECC) on 2x 204-pin SO-DIMM socket
Expansion
  • 1x PCIe x1 Gen 2
  • 1x M.2 Key E 2230 with PCIe x1 and USB(Shared) for Wireless
  • 1x M.2 Key M 2260/2280 with SATA signal for SSD
  • 1x full/half size Mini PCIe socket with PCIe x1 and USB(Shared)
Display LVDS/HDMI/VGA
Audio Realtek ALC887 HDA codec
LAN 2x GbE
Serial Port
  • 2x RS-232/422/485 on rear I/O (selectable by BIOS)
  • 1x RS-232 on rear I/O
  • 3x RS-232 on pin header (2.00 mm pitch)
USB
  • 4x USB3.0
  • 4x USB2.0
Storage Device 1x SATA III
GPIO 8 bit
Others N/A
Dimension 170 x 170mm

订购指南

Ordering Guide
AB1-3F78 (R).WADE-8172-N3350
Mini-ITX ESB.Intel® Apollo lake SoC Processor N3350 w/DDR3L/ VGA/LVDS/HDMI/dual GbE LAN/SATA

包装清单

Packing List
One Driver CD
One SATA cable
One I/O shield
One WADE-8172 motherboard
