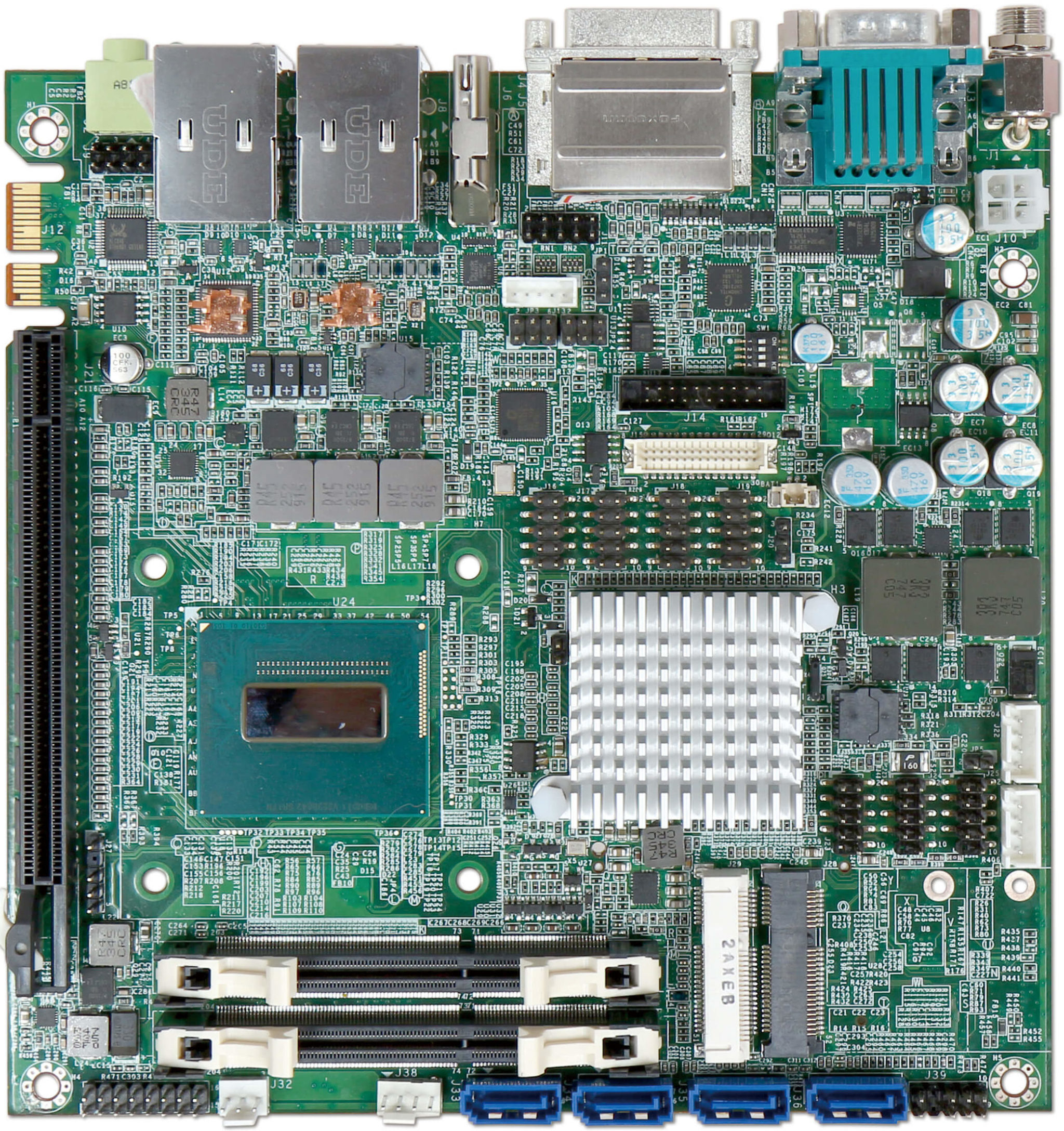

WADE-8022

Intel® Core™ i3/i5/i7 mobile processor based MiniITX Board with dual Gigabit Ethernet, 4x SATA III ports, 6x COM ports, 1x PCIe x16 expansion slot and 2x mini-PCIe slot with mSATA interface

产品特色

  • Intel® 4th Dual/Quad processor in FCBGA1364
  • Intel® QM87 PCH
  • 2x DDR3L SO-DIMM slots up to 16GB (supports 1600/1333 MT/s)
  • One PCIe x16 slot (Gen3 support)
  • 2x mini-PCIe slot (supports mSATA)
  • 1x PCIe x1 Gold finger (2x PCIe x1 signal)
  • 6x COM ports (2pcs on rear I/O, 4pcs on board header)
  • 4x SATA III Ports (supports RAID 0,1,5,10)
  • Total 10x USB ports (4x USB 3.0 Ports & 6x USB 2.0 Ports)
业务服务需求
产品支持服务

产品描述

WADE-8022 is based on Intel® QM87 chipset and Mobile processor sku like Core™ i3/i5 and i7(BGA type). WADE-8022 of the Intel® platform will provide high performance and flexibility for functional expansion, such as Gaming, Kiosk, DS, Medical, Defense, Industrial automation and control applications.

规格

Specifications
MODEL WADE-8022
Form Factor Mini-ITX
CPU Intel® 4th Dual/Quad Core™ processor in FCBGA1364
Chipset Intel® QM87 PCH
BIOS AMI UEFI
Memory Support up to 16GB DDR3L 1066/1333 MT/s SDRAM on 2x 204pin SO-DIMM
Expansion 1x PCIe 3.0 x16 2x mini-PCIe slot(switch function) 1x PCIe x1 Golden finger(Gen2)
Display DP/VGA/DVI/HDMI/LVDS/
Audio Intel® QM87 PCH built in HDA controller Realtek ALC886-GR HAD codec,5.1 channels
Serial Port 1x RS-232 port on rear I/O 1x RS-232/422/485 selectable port on rear I/O 4x RS-232 port on pin header
USB 6x USB 2.0 ports 4x USB 3.0 ports
Storage Device 4x SATA III
GPIO 8 bit
Dimension 170mm(L) x 170mm(W); 6.69″(L) x 6.69″(W)

订购指南

Ordering Guide
AB1-3A77 (R).WADE-8022 Mini-ITX ESB.Intel® QM87chipset on Board. w/DDR3L SO-DIMM/DVI-I /DP/HDMI/Dual GbE Lan/COM/Audio/USB

包装清单

Packing List
One WADE-8022 motherboard
One Driver CD
One SATA cable
