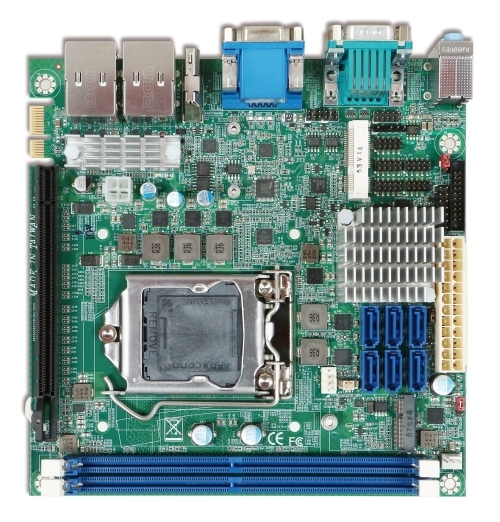

WADE-8017

搭载英特尔® 第 7 代和第 6 代酷睿™处理器 ( 前身为 Kaby Lake/Skylake ) Mini-ITX 配备 DDR4 DRAM 三个显示屏、2 个 GbE LAN 端口、6 个 COM 端口

产品特色

  • Intel® 7th and 6th Gen Core™ Processors support
  • 2x long-DIMM support DDR4 ECC/Non- ECC SDRAM up to 32GB
  • Display : VGA/DP/HDMI
  • 1x PCIe x1 Golden finger support SEB 6x SATA III ports support RAID 0/1/5/10 H110 just support 4x SATA port and not support RAID Function
  • 1x PCIe x16 (Gen3), one M.2 type E socket (H110 not support)

产品描述

WADE-8017 搭载英特尔® Q170/C236/H110 芯片组和台式机处理器,包括英特尔® 第七代和第六代酷睿™ i3/i5/i7 SKU。 该主板支持 DDR4、PCIe 3.0 和 SATA III。 这些功能帮助您构建高性能和稳定的系统

规格

MODEL WADE-8017
Form Factor Mini-ITX
CPU Intel® 7th and 6th Gen Core™ Processors CPU in LGA1151 package
Chipset Intel® Q170/H110/ C236 PCH
BIOS AMI UEFI
Memory 2x DDR4 DIMM up to 32GB
Expansion 1x PCIe x16 slot
1x PCIe x1 Golden finger
1x M.2 type E socket
1x mini-PCIe socket
Display DP/HDMI/VGA
Audio Realtek ALC892 HDA codec
LAN 2x GbE
Serial Port 2x RS-232/422/485
4x RS-232
USB 4x USB 3.0
2x USB 2.0
Storage Device 6x SATA (H110 just 4x SATA)
GPIO 8 bit
Others N/A
Dimension 170 x 170mm

订购指南

AB1-3D16 (R).WADE-8017
Mini-ITX ESB.Q170 w/o ECC LGA1151.w/DDR4 SDRAM /VGA/DP/HDMI/Dual GbE/COM/Audio/USB
AB1-3D75 (R).WADE-8017-H110
Mini-ITX ESB.H110 w/o ECC LGA1151.w/DDR4 SDRAM /VGA/DP/HDMI/Dual GbE/COM/Audio/USB
AB1-3D76 (R).WADE-8017-C236.
Mini-ITX ESB.C236 w/ECC LGA1151.w/DDR4 SDRAM /VGA/DP/HDMI/Dual GbE/COM/Audio/USB
AB1-3G16 (R).WADE-8017-kBL
Mini-ITX ESB.Q170 w/ECC LGA1151.w/DDR4 SDRAM /VGA/DP/HDMI/Dual GbE/COM/Audio/USB
AB1-3G13 (R).WADE-8017-C236-kBL
Mini-ITX ESB.C236 w/ECC LGA1151.w/DDR4 SDRAM /VGA/DP/HDMI/Dual GbE/COM/Audio/USB
AB1-3G12 (R).WADE-8017-H110-kBL
Mini-ITX ESB.H110 w/o ECC LGA1151.w/DDR4 SDRAM /VGA/DP/HDMI/Dual GbE/COM/Audio/USB



包装清单

One WADE-8017 motherboard
One Driver CD
One SATA Cable
