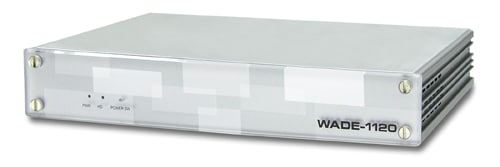

WADE-1120A

The fan-less compact Mini-ITX Bore Bone Chassis

产品特色

  • Integrated with WADE-8041 or similar Mini-ITX board
  • Small form factor with fan-less ventilation mechanism
  • Rugged design for harsh environment
  • Unique tool-free design for quick top cover release
型录下载
业务服务需求
产品支持服务

产品描述

The WADE-1120A is designed to efficiently dissipate any internal heat, eliminating the need for a ventilation fan. It is the perfect system solution for any embedded application that operates in a harsh environment. WADE-1120A is designed with either a built-in WADE-8041 board or similar Mini-ITX board as the barebone system. Its unique tool-free design allows the integrator or field service professional to release the top cover easily and quickly. Complete with memory, DOM or Compact flash, WADE-1120A is ready to go to work.

规格

Specifications
POWER SUPPLY
Maximum Output 55W ATX power supply
Input Voltage 90V ~ 265V AC, full range
Input Frequency 47 ~ 63 Hz
Input Current 2.0A(RMS)@115V, 1.0A(RMS)@230V
Efficiency >74%
Holdup time 17ms. at 115V/60Hz or 230V/50Hz
Over Voltage Protection 3.3V@3.5~4.5V; 5V@5.5~6.82V; 12V@13.4~16.5V
MTBF 121,330 hrs
Certification UL, cUL, TUV, CE, FCC
Dimension (WxDxH) 183 x 50 x 37.6 mm; 7.2” x 2” x 1.5”
Mechanical & Environmenal
Operation Temperature 0~50°C
Storage Temperature -20~80°C
Relative Humidity 5~95% non-condensing
Dimension 268 x 196 x 44 (mm)
Weight 2.2 Kg

订购指南

Ordering Guide
WADE-1120A-55X The Fan-free Designed Compact Node Chassis built with 55W ATX PSU * Rack-mount kit available (option)
