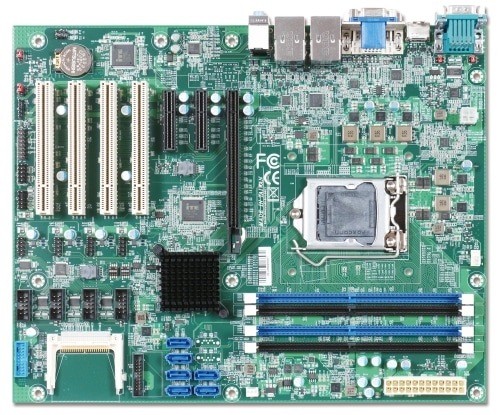

RUBY-D718VG2AR

Leading Desktop Intel® 7th and 6th Gen Core™ processors (former Kaby Lake/ Skylake) ATX with DDR4 SDRAM, Triple Displays, 2x GbE LAN ports, 6x COM Ports

产品特色

  • Intel® 7th and 6th Gen Core™ Processors support
  • 4x Long-DIMMs support DDR4 ECC(C236) / Non-ECC(Q170) SDRAM up to 64GB
  • 1x PCIe x16, 2x PCIe x4, 4x PCI slots
型录下载
业务服务需求
产品支持服务

产品描述

RUBY-D718VG2AR is based on Intel® Q170/ C236 chipset and desktop processor SKU like Intel® 7th and 6th Gen Core™ i3, i5 and i7 Processors. Built with PCI and PCIe expansions, it’s suitable for Medical, Industrial automation, and Digital Signage application.

规格

Specifications
MODEL RUBY-D718VG2AR
Form Factor ATX
CPU Intel® 7th and 6th Gen Core™ Processors CPU in LGA1151 package
Chipset Intel® Q170/H110/C236
BIOS AMI UEFI
Memory 4x DDR4 DIMM up to 64GB
Expansion 4x PCI slots 1x PCIe x16 slot 2x PCIe x4 slots
Display VGA/DVI-D/HDMI
Audio Realtek ALC886 HDA codec
LAN 2x GbE
Serial Port 1x RS-232/422/485 5x RS-232
USB 6x USB3.0 8x USB2.0
Storage Devices 6x SATA III (C236 supports 8x SATA III)
GPIO 8 bit
Others PS/2 KB & MS
Dimension 304.8 x 243.8mm

订购指南

Ordering Guide
AB1-3D29 (R).RUBY-D718VG2AR ATX.IMB.LGA1151.CPU.Q170.DDR4/VGA/ HDMI/DVI/Dual GbE/COM/Audio/USB
AB1-3D77 (R).RUBY-D718VG2AR-C236 ATX.IMB.LGA1151.CPU.C236.DDR4/VGA/ HDMI/DVI/Dual GbE/COM/Audio/USB
AB1-3G14 (R).RUBY-D718VG2AR-kBL ATX.IMB.LGA1151.CPU.Q170.DDR4/VGA/ HDMI/DVI/Dual GbE/COM/Audio/USB
AB1-3G15 (R).RUBY-D718VG2AR-C236-kBL ATX.IMB.LGA1151.CPU.Q170.DDR4/VGA/ HDMI/DVI/Dual GbE/COM/Audio/USB

包装清单

Packing List
One RUBY-D718VG2AR ATX Industrial Main Board
One Installation DVD
One SATA III cable
One I/O shield
