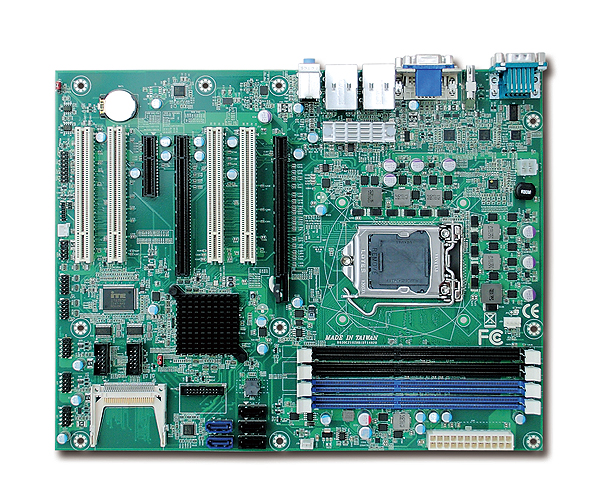

Intel® Core i5/i7 processor based ATX with DDR3 SDRAM, Triple display, Dual Gigabit Ethernet, and USB Ports.


  • Intel® Core™ i5 and i7 Processors support
  • Four long DIMMs support dual channel DDR3 non-ECC SDRAM up to 32 GB
  • Triple display by VGA/DVI-D/HDMI
  • Rich I/O, USB 2.0/3.0, dual gigabit Ethernet, COM ports and SATA II/III ports support Intel® RAID 0,1,5,10
  • One PCIe x16 (Gen3), one PCIe x16 (Gen2, x4 signal), one PCIe x4 (Gen2, x1 signal), and four PCI slots
  • One CF-SATA slot (support both CF and CF-SATA card)
  • Intel® Active Management Technology 8.0


RUBY-D714VG2AR is based on Intel Q77 chipset and desktop processor sku like Core i5 and i7. Build with flexible PCI express expansion and bifurcation feature, it can support two IO interface cards and can also suitable for Medical, Industrial automation, and digital signage applications.


CPU Intel® Core™ i5-3550S Processor (4 x 3.00 GHz / 3.70 GHz, 6 MB SmartCache, 65 W) Intel® Core™ i3-3220 Processor (2 x 3.30 GHz, 3 MB SmartCache, 55 W) Intel® Core™ i7-2600 Processor (4 x 3.40 GHz / 3.80 GHz, 8 MB SmartCache, 95 W) Intel® Core™ i5-2400 Processor (4 x 3.10 GHz / 3.40 GHz, 6 MB SmartCache, 95 W) Intel® Core™ i3-2120 Processor (2 x 3.30 GHz, 3 MB SmartCache, 65 W) Intel® Pentium® Processor G2120 (2 x 3.10 GHz, 3 MB SmartCache, 55 W) Intel® Pentium® Processor G850 (2 x 2.90 GHz, 3 MB SmartCache, 65 W) Intel® Celeron® Processor G540 (2 x 2.50 GHz, 2 MB SmartCache, 65 W)
Form Factor ATX
Chipset Intel® Q77
DRAM Up to 32GB DDR3 1333/1600 SDRAM on 4x 240-pin DIMM sockets (dual channel)
Graphic Controller Intel® HD Graphics 3000/4000
Display Interface VGA Resolution up to 2560×1600 @60Hz DVI-D up to 1920×1200 @60Hz HDMI up to 1920×1200 @60Hz
Storage 2x SATA support 6Gb/s data transfer rate, 3x SATA support 3Gb/s data transfer rate, Supports RAID 0,1,5,10, 1xCFEX(Only support CFEX Card)
Network Intel® 82579LM and 82583V dual gigabit ethernet controllers, PCI Express x1 interface based on gigabit ethernet Dual RJ-45 connectors with two LED indicators at rear I/O panel
Bus Interface 1x PCI Express x16 slot (Gen3, 8.0 GT/s) 1x PCI Express x16 slot (with x4 signal Gen 2, 5.0 GT/s), 1x PCI Express x4 slot (with x1 signal Gen 2, 5.0 GT/s), 4x PCI devices at 32-bit 33 MHz

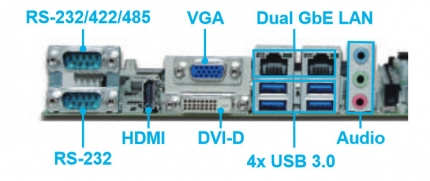

Serial Interface 4x RS232, 1x RS232 and 1x Selectable RS232/422/485 on rear I/O
USB 10x (4x USB 3.0, 6x USB 2.0)
Audio Intel® Q77 PCH built-in High Definition Audio up to 192-Khz 32-bit, Realtek ALC886-GR HDA codec, Audio Jack DIP Light Pink/Lime/Light Blue
Miscellaneous PS/2, LPT, GPIO 8bit,Watchdog Timer on board
Firmware Pheonix UEFI BIOS
Power Requirement ATX 24-pin power input
Operating Temperature 0°C~60°C (with highest performance on 50 °C)
Storage Temperature -20°C~80°C
Dimensions 304.8×243.8 mm


Ordering Guide
Standard One SATA II cable One SATA III cable (Black) One Installation CD One I/O shield B6902890 DVI-D + VGA cable with bracket B8981980 PICMG SBC Handling and Installation Notice B3751400 Installation CD
