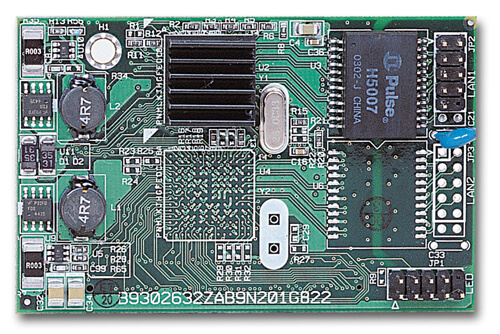

ROBO-N201G

One-port Gigabit Ethernet extension module with Portwell OmniPCI™ connection interface

产品特色

  • Intel® 82541PI
  • Compact sized
  • Proprietary PCI connector for piggy back (board to board) connection
  • Fully PCI Bus spec. V2.1 compliant
  • One accessory card for extension Ethernet port(s), Link, and Speed indicators (Two LED indicators; one shows green when linked and blinks when transmitting or receiving data, the one shows green when linked at 100 Mbps and yellow when linked at 1000 Mbps)
  • One Ethernet RJ-45 daughter board and one daughter card
  • Support IEEE 802.3
  • Auto-negotiation algorithm of full-duplex and half-fuplex operation for 10 Mb/s and 100Mb/s (NWAY)
  • Dimension : 77(L) x 52(W) mm

订购指南

Ordering Guide
Standar ROBO-N201G One-port Gigabit Ethernet port extension module with Portwell OmniPCI™ connection interface
