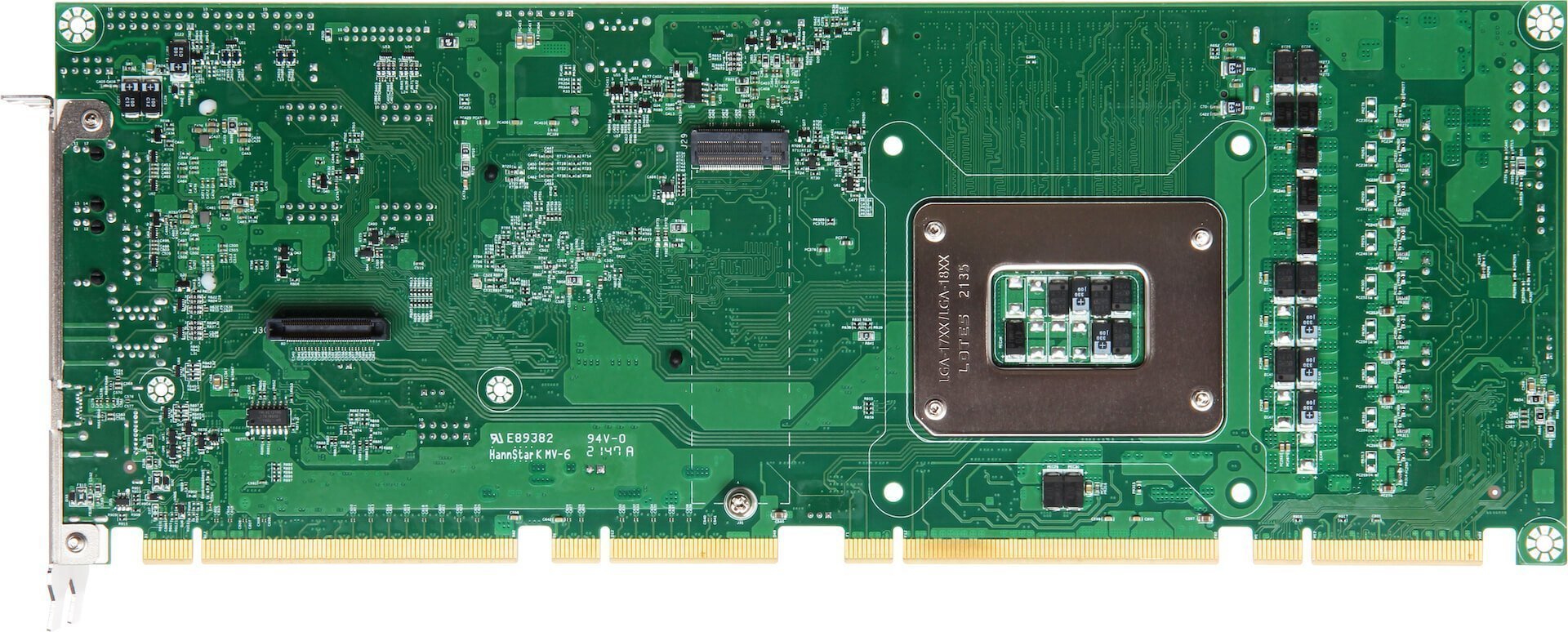

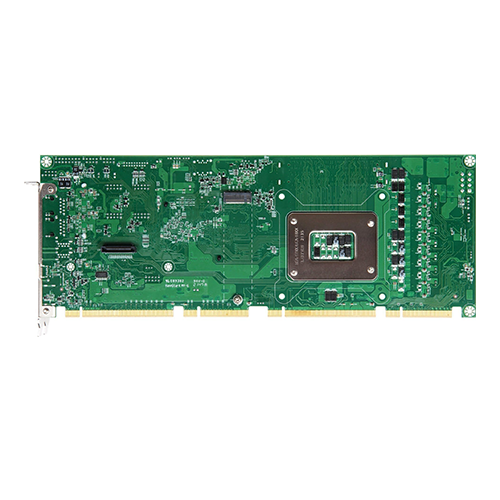

ROBO-8116G2AR-Q670E is based on Intel® 600 series chipset and workstation processors. Built with flexible PCI express expansions, ROBO-8116G2AR-Q670E is suitable for Medical, Industrial automation, and Digital Signage application.
| MODEL | ROBO-8116G2AR-Q670E |
|---|---|
| Form Factor | PICMG1.3 |
| CPU | Intel® 12th/13th Generation Core processors family in LGA1700 package |
| Chipset | Intel® Q670E |
| BIOS | AMI UEFI |
| Memory | 2 x DDR5 Non-ECC DIMM up to 64GB |
| Expansion |
|
| Display | DVI-D / HDMI / DP |
| Audio | Realtek ALC888S HDA codec |
| LAN | 2x GbE(2.5G) |
| Serial Port | 2x RS-232 ports 2x RS-232/422/485 |
| USB |
|
| Storage Devices | 4x SATA III(Dual ports via Backplane) ,1x M.2 Type M 2280 |
| GPIO | 8 bit |
| Others | / |
| Dimension | 338.5 x 126.39mm |
| AB1-3K68 | (R).ROBO-8116G2AR-Q670E PICMG 1.3(PCI-E+PCI).LGA1700. Q670E PCH. Intel 12th/13th gen processors.SHB. w/HDMI/Dual GbE/Audio/four COM ports |
| Standard | B6902932 SATA III cable |
|
B8981980 PICMG SBC Handling and Installa
|
|
|
B6902352 *(GP).Cable.DB9x2 to HSG(5×2)x2 L=300mm W/Bracket for Ruby-9717/Ruby-9718. CY-8A08006R.CHUAN YANG
|
|
| TBD Installa | |
| Optional | B6903090 USB 3.0 cable with bracket B6902230 USB port cable with bracket |
