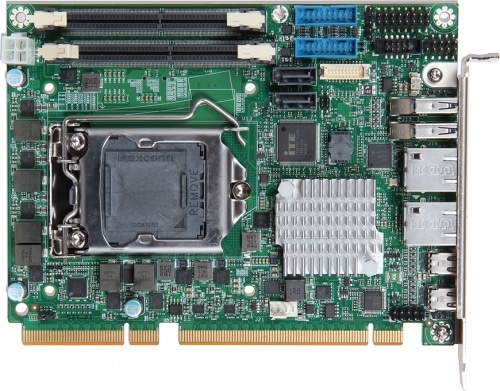

ROBO-6912VG2AR-Q370

Intel® Core™ i3/i5/i7/Pentium® Celeron® processor based on PICMG 1.3 halfsize SHB with DDR4 SO-DIMM, mini DP, DVI-D,Dual Gigabit Ethernet, SATAIII, mSATA, Audio, USB

产品特色

  • Support Intel® 8th Gen Coffee Lake-S processor in LGA1151
  • Delivers up tp 32GB maximum DDR4 2400 MT/s non-ECC SO-DIMM on two sockets
  • High speed dual Gigabit Ethernet based on PCI express x 1, high bandwidth I/O interface
  • On-board two SATAIII ports, support RAID 0, 1

产品描述

ROBO-6912VG2AR-Q370 is based on Intel ® Q370 chipset to support Intel ® Core™ i3/i5/i7 processors. Built with flexible PCI express expansions, ROBO-6912VG2AR-Q370 is suitable for Medical, Industrial automation, and Digital Signage application

规格

MODEL ROBO-6912VG2AR-Q370
Form Factor PICMG1.3
CPU Intel® Core™ i3/i5/i7/i9/ Pentium®/ Celeron®
Chipset Intel® Q370
BIOS AMI UEFI
Memory 2 x DDR4 non- ECC SO-DIMM up to 32GB
Expansion 1x PCIe x16 slot or 2x PCIe x8 slots or 1x PCIe x8 slot 2x PCIe x4 slots 1x PCIe x4 slot
Display 2x mini DP / DVI-D
Audio Realtek ALC888S HDA codec
LAN 2x GbE
Serial Port 1x RS-232/422/485
USB 4x USB3.2 Gen1 2x USB3.2 Gen2
Storage Devices 2x SATA III 1x mSATA
GPIO 8 bit
Others N/A
Dimension 167.64 x 126.39mm

订购指南

AB1-3J42Z (R).ROBO-6912VG2AR-Q370 PICMG 1.3(PCI-E+PCI).LGA1151. Q370 PCH. Intel Core i5/i7 processors.SHB. w/ DVI-D/miniDP*2/Dual GbE/Audio/USB 3.1/ COM

包装清单

Standard B8981980 PICMG SBC Handling and Installation Notice
B6902932 SATA III cable
B8983650 Installation CD
Optional B6902230 USB port cable with bracket
B6903090 USB 3.0 cable with bracket
