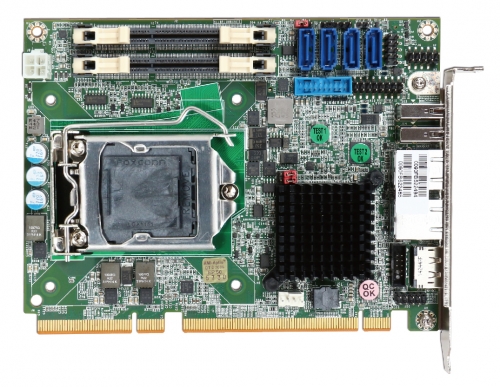

ROBO-6911VG2AR-Q170

Intel® Core™ i3/i5/i7/Pentium®/Celeron® processor based on PICMG 1.3 half size SHB with DDR4 SO-DIMM, DP, DVI-I, Dual Gigabit Ethernet, mSATA, Audio, USB

产品特色

  • Support Intel® 7th and 6th Gen Skylake-S Kaby Lake-S processor in LGA1151
  • Delivers up tp 32GB maximum DDR4 2133 MT/s non-ECC SO-DIMM on two sockets
  • Supports mutiple display by DP on bracket and on-board DVI-I(DVI-D+VGA)
  • High speed dual Gigabit Ethernet based on PCI express x 1, high bandwidth I/O interface
  • On-board four SATAIII ports, support RAID 0, 1, 5, 10
型录下载
业务服务需求
产品支持服务

产品描述

ROBO-6911VG2AR-Q170 is based on Intel® Q170 chipset to support Core™ i5 and i7 processors. Built with flexible PCI express expansions, ROBO-6911VG2AR-Q170 is suitable for Medical, Industrial automation, and Digital Signage application.

规格

Specifications
MODEL ROBO-6911VG2AR-Q170
Form Factor PICMG1.3
CPU Intel® Core™ i3/i5/i7/ Pentium®/Celeron®
Chipset Intel® Q170
BIOS AMI UEFI
Memory 2 x DDR4 non-ECC DIMM up to 32GB
Expansion 4x PCI slots 1x PCIe x16 slot or 2x PCIe x8 slot or 1x PCIe x8 + 2x PCIe x4 slots 1x PCIe x4 slot
Display VGA/DVI-D/HDMI
Audio Realtek ALC886 HDA codec
LAN 2x GbE
Serial Port 2x RS-232 2x RS-232/422/485
USB 10x USB 3.0 2x USB 2.0
Storage Devices 6x SATA III
GPIO 8 bit
Others PS/2 KB & MS
Dimension 338.5×126.39mm

订购指南

Ordering Guide
AB1-3D39 (R).ROBO-6911VG2AR-Q170 PICMG 1.3 half size (PCI-E) .LGA1151. Intel® i5/i7 processors.SHB.w/DP/DVI-I/Dual GbE/Audio/mSATA
AB1-3G65 (R).ROBO-6911VG2AR-Q170-KBL PICMG 1.3 half size (PCI-E) .LGA1151. Intel® i5/i7 processors.SHB.w/DP/DVI-I/Dual GbE/Audio/mSATA

包装清单

Packing List
Standard B6902932 SATA III cable
B8981980 PICMG SBC Handling and Installation Notice
B8983650 Installation CD
Optional B6902230 USB port cable with bracket
B6903090 USB 3.0 cable with bracket
