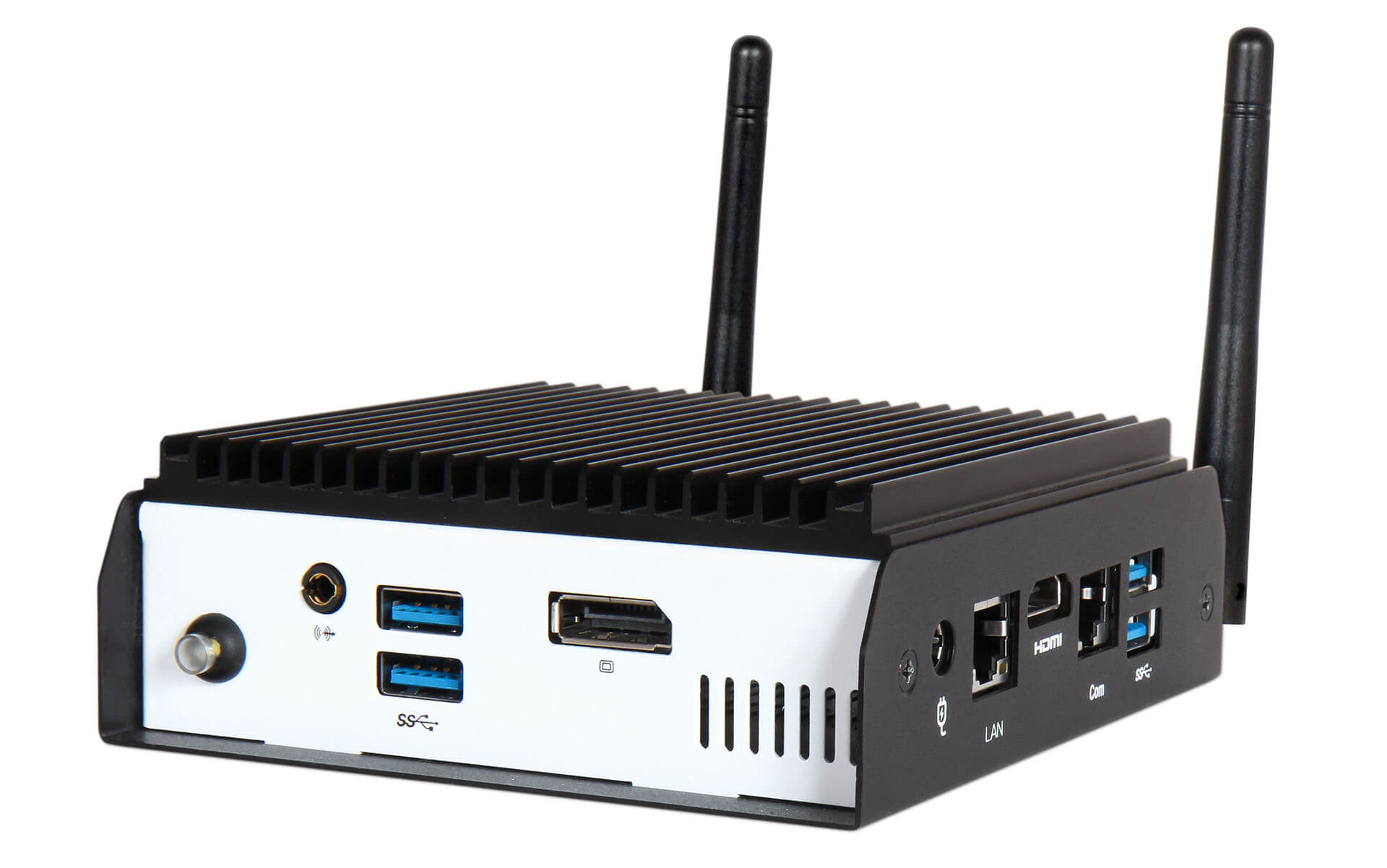

RICH-61D0

Embedded fan-less system with Intel® Apollo Lake NUC platform

产品特色

  • Intel® Atom® 14nm SOC with Dual/Quad Core
  • Dual Channel DDR3L 1866 SO-DIMM up to 8G
  • Dual display by DP & HDMI up to UHD resolution
  • M.2 (E+A Key), SATAIII Port and MicroSD 3.0 socket
  • DC-In 12V ~19V
  • CE/FCC Class B approved
型录下载
业务服务需求
产品支持服务

产品描述

RICH-61D0 builds on Intel® Atom® Apollo Lake SOC supports Dual/Quad Core (up to 10W) that can support dual channel DDR3L memory. Support one Gigabit Ethernet port and one M.2 socket.

规格

Model RICH-61D0
M/B WUX-3350/4200/3455
Form Factor NUC
System
CPU Intel® Atom® Apollo Lake SOC (N3350/N4200) supports Dual/Quad Core (up to 10W) with 2MB Cache
BIOS AMI UEFI
Memory DDR3L SO-Dimms/Up to 8GB
Graphic Controller Intel® Gen 9 Graphics supporting DirectX 12, OpenGL 4.2, OpenCL 2.0 HW accelerated video decoding supporting H.264, H.265, MPEG2, VC-1/WMV9, JPEG, VP8, VP9
Super I/O EC
Storage 1x SATA III port, 1x Micro-SD 3.0 socket Support Onboard eMMC 5.0 (32G/64G)
External I/O
Serial 1x RS-232
USB 4x USB 3.0
Display HDMI, DP
Ethernet Realtek® RTL8111H
PS/2 N/A
Audio Mic-in or Line-out
D I/O N/A
Expansion 1x M.2 Key E 2230 for wireless module support WiFi, BT, 3G & 4G
PWR
System DC 12V~19V
Environment
OP Temp. 0°C ~ 60°C
Storage Temp. -40°C ~ 80°C
Humidity 95%@40°C, non-condensing
Vibratoin 5Grms/10-500Hz IEC 60068-2-6
Shock 50G, 11 msec, IEC 60068-2-27
Mechanical
Dimension(WxDxH) 113 x 135 x 41 mm
Weight 1.5 Kg

订购指南

Ordering Guide
AS5-3537 (R).ATO.RICH-61D0. NUC System.
