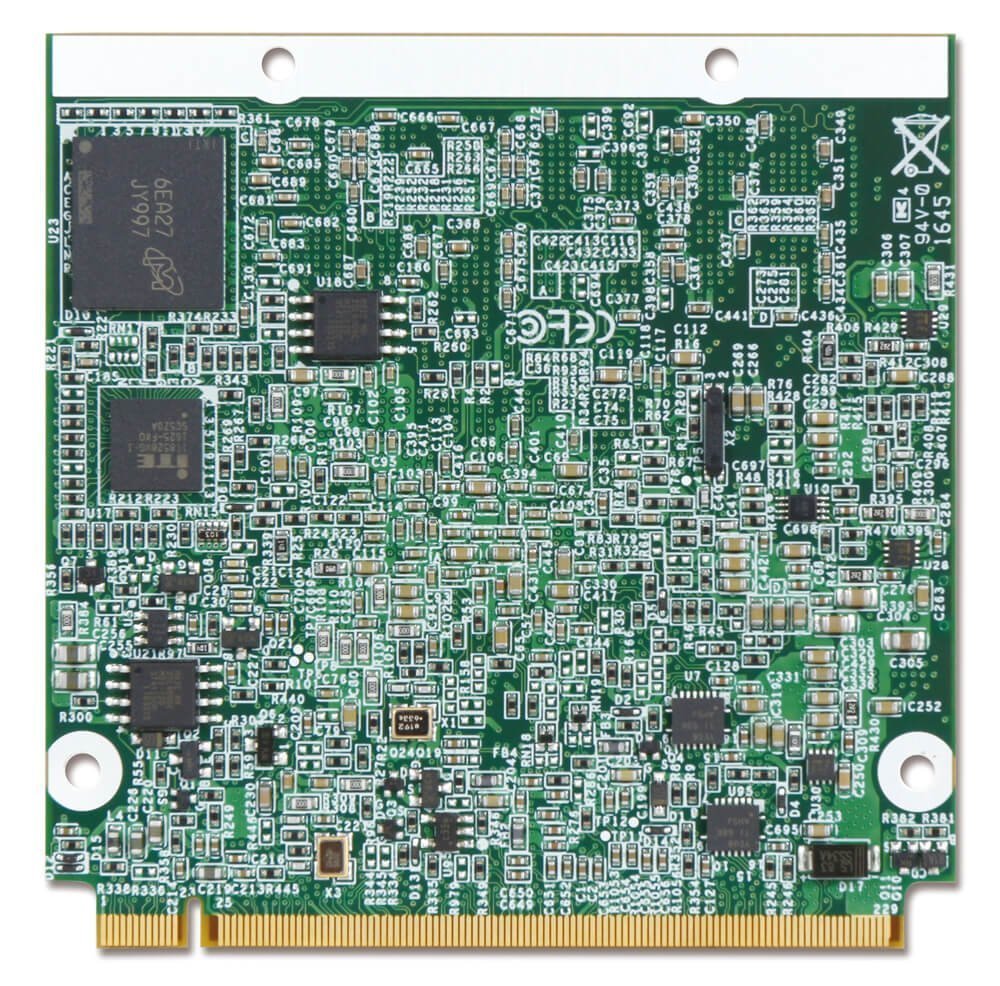

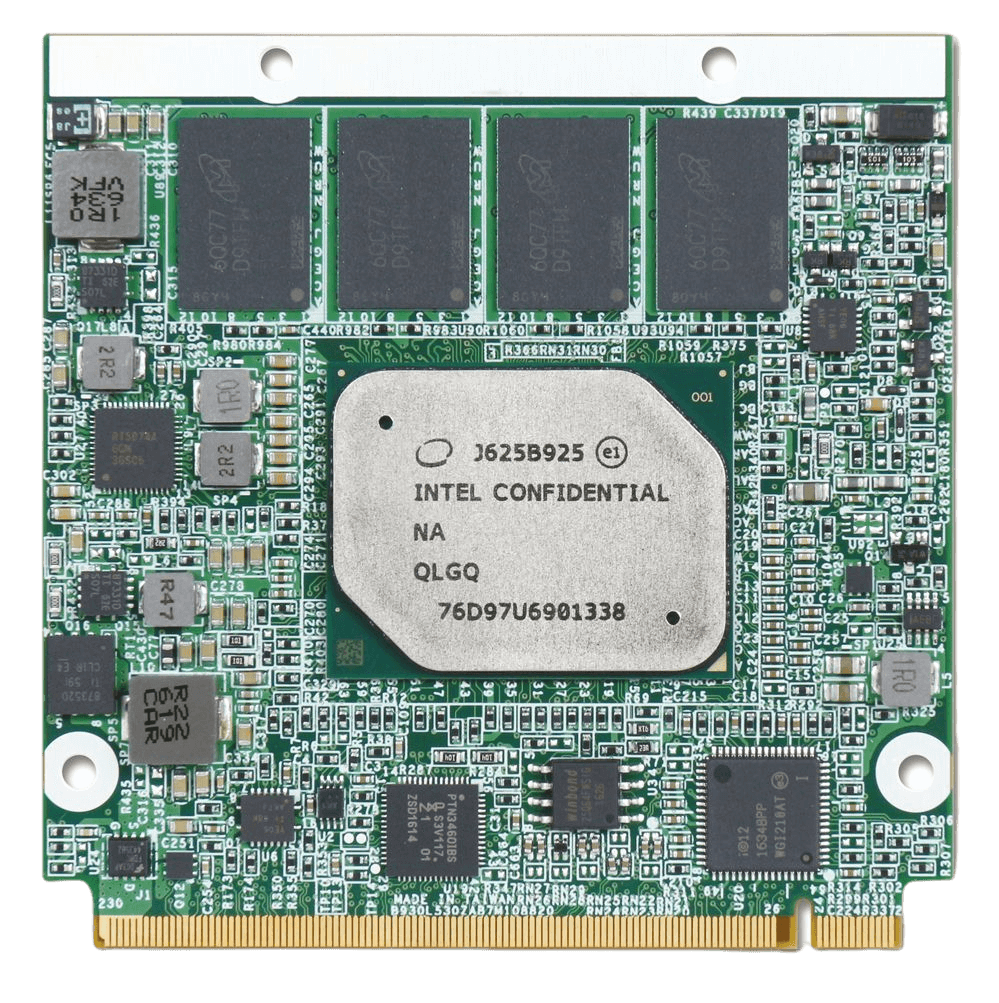

PQ7-M108

Qseven module by Qseven 2.1 based on Intel® Atom® / Pentium® / Celeron processors (Apollo Lake) with LPDDR4 SDRAM up to 8GB, 24bit LVDS, DP/HDMI

产品特色

  • On Board LPDDR4 DRAM and up to 8GB
  • 24-bit LVDS, HDMI/DP output
  • Four PCI Express lanes
  • Support three USB 3.0 or four USB 2.0
  • On Board eMMC 5.0 (Optional)
型录下载
业务服务需求
产品支持服务

产品描述

PQ7-M108 is designed with Intel® Atom®/ Pentium®/ Celeron® processors (Apollo Lake) which featured with higher graphic performance and wider memory bandwidth than the previous platform. Benefit from Intel Apollo Lake industrial grade processor design, the operating temperature supports -40°C to 85°C. With qualified industrial-grade components selecting, PQ7-M108 is aimed to be widely applied on automation, security, transportations and so to different kinds of harsh environment applications.

规格

CPU Intel Atom® x5-E3930 Processor (2 x 1.30 GHz, 2 MB L2, 6.5 W) Intel Atom® x5-E3940 Processor (4 x 1.60 GHz, 2 MB L2, 9.5 W) Intel Atom® x7-E3950 Processor (4 x 1.60 GHz, 2 MB L2, 12 W) Intel® Celeron® Processor N3350 (2 x 1.10 GHz, 2 MB L2, 6 W) Intel® Pentium® Processor N4200 (4 x 1.10 GHz, 2 MB L2, 6 W)
Format Qseven® 2.1, 70 x 70 mm
Chipset SoC (System-On-Chip)
DRAM Up to 8GB LPDDR4 – 2133/2400, Dual Memory Channel
Display Interface LVDS/eDP, DP/HDMI
Storage Up to 64 GB onboard eMMC 5.0 flash
Network 1x 10/100/1000 GbE (Intel® i210)
Bus Interface 1x SDIO, 2x SPI, 1x I²C, 1x HDA, 1x SMBus, 1x LPC, 1x UART, 1x WDT, 1x JTAG
Serial Interface 2x SATA 3.0 (6 Gb/s); 4x PCIe x1 Gen2
USB 3x USB 3.0 4x USB 2.0
Dimensions 70×70 mm


订购指南

Ordering Guide
Product Ordering P/N Status
PQ7-M108-N3350-4G-8G AB7-3019Z Available
PQ7-M108-N4200-4G-8G AB7-3054Z Available
PQ7-M108-E39xx-xG-xG Contact us Available

配件

Accessory
Accessory Ordering P/N Status
Heat Spreader B8308940 (for N3350/N4200 ) B8309030 (for E3930/E3940/E3950) Available
Heat Sink Set B8308970 (for N3350/N4200) B8308980 (for E3930/E3940/E3950) Available
PQ7-C201 AB1-3B45 Available
