PQ7-M107

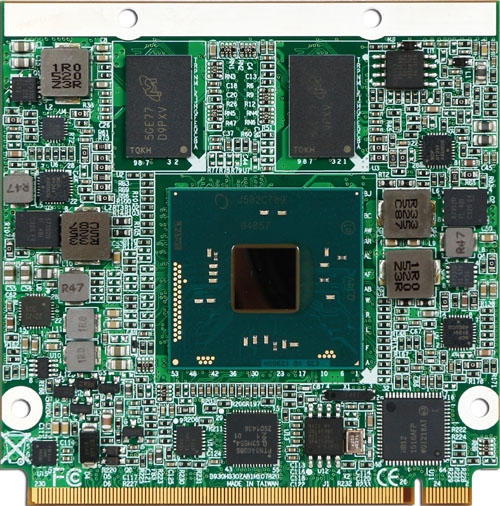

Intel Celeron and Pentium Processor N3000 based Qseven Module Braswell SoC

产品特色

  • Intel® Celeron® and Pentium® processor N3000 product families (4W~10W), formerly codenamed Braswell
  • On-board DDR3L DRAM and up to 4GB
  • On-board eMMC up to 64GB
  • Support LVDS and DisplayPort (DP) interfaces
  • Three Gen 2.0 PCI Express x1 (optional to four x1), USB 2.0/3.0, 2x SATA III, I2C/Smart Battery function

产品描述

Portwell’s PQ7-M107 is designed with Intel® Celeron® and Pentium® processor N3000 product families (4W~10W), formerly codenamed Braswell, delivering greater CPU and graphics performance over the previous generation entry-level CPUs from Intel while operating with lower power consumption and lower TDP. With greater performance and memory bandwidth support, the PQ7-M107 is an ideal building block for solutions for manufacturing, transportation and automation applications. In addition, the PQ7-M107 features HD camera with MIPI CSI-2, 4k x 2k resolution and three independent displays.

规格

CPU Intel® Pentium® Processor N3700 (4 x 1.60 GHz, 2 MB L2, 6 W) Intel® Celeron® Processor N3150 (4 x 1.60 GHz, 2 MB L2, 6 W) Intel® Celeron® Processor N3050 (2 x 1.60 GHz, 2 MB L2, 6 W) Intel® Celeron® Processor N3000 (2 x 1.04 GHz, 2 MB L2, 4 W)
Format Qseven
Chipset SoC (System-On-Chip)
DRAM Up to 4 GB DDR3L-1600 soldered on board
Graphic Controller Intel® HD Graphics Gen8
Display Interface 2x (support DP or HDMI), mapped via DDI, VGA, dual channel 24bit LVDS (eDP to LVDS)
Storage 1x SDIO, 2x SATA II (3.0 Gbit/s)
Network 1x Gigabit Ethernet Intel® I210IT
Bus Interface 3x PCIe x 1 (Option to 4)
Serial Interface 1x Tx/Rx/CTS#/RTS# signals (Qseven R2.0)
USB 4x USB 2.0, Up to 1x USB 3.0
Audio 1x Intel® High Definition Audio, 51 Audio codec
Miscellaneous Watchdog Timer,HW monitoring CPU, system temperature, fan
Firmware Phoenix UEFI BIOS
Power Requirement +5V DC ±5%
Power from W depends on used CPU
Operating Temperature -40°C to +85°C
Extended Temperature -40°C to +85°C
Dimensions 70×70 mm

订购指南

Ordering Guide
AB7-3050Z (R).PQ7-M107-N3710-4G-8G. (4C. 2M. 1.6GHz. 6watts)QSeven Module Board. Atom Braswell CPU. DDR3L
Contact us (R).PQ7-M107-N3xxx-xG-xG. With chosen memory and eMMC capacity
