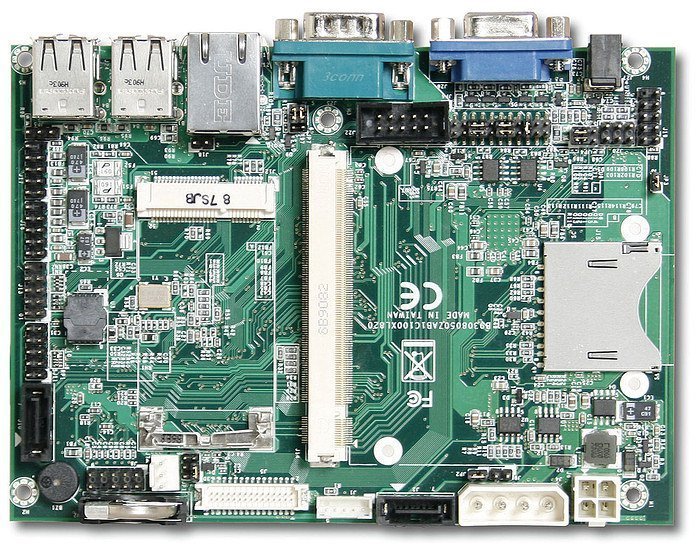

PQ7-C100XL

Qseven Carrier Board for Intel Menlow-XL CPU ATOM Z520PT

产品特色

  • Qseven carrier board accept Portwell Qseven modules
  • Intel® Atom™ Z5XXPT and SCH US15WPT
  • 3.5″ ESB form factor to embedded applications
  • On Board DC to DC circuit for DC in application
  • Mini-PCIe support
  • Support boot from SD(SDIO 1.1)

产品描述

3.5″ ESB Form Factor Carrier Board For Qseven Module

规格

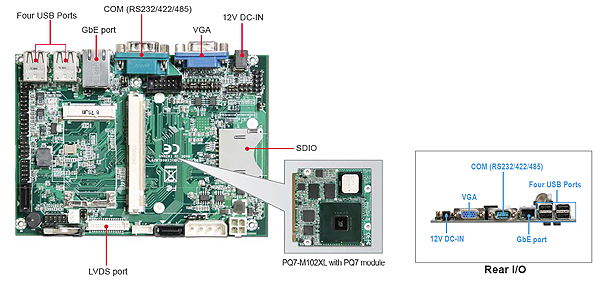

Format 3.5″ ESB
Display Interface VGA
Storage SD Card slot, one mini-PCIe, two SATA ports
Network GbE port
USB Four rear USB ports, Three USB header
Audio one MIC-IN, one LINE-OUT
Power Requirement DC 12V
Operating Temperature -40°C ~ 85°C
Extended Temperature -40°C ~ 85°C
Dimensions 146mm x 102mm

订购指南

Ordering Guide
AB1-3326 PQ7-C100XL 3.5″ QSEVEN Carrier Board
AB1-3667 PQ7-C100XL-CAN 3.5″ QSEVEN Carrier Board with CAN Bus
