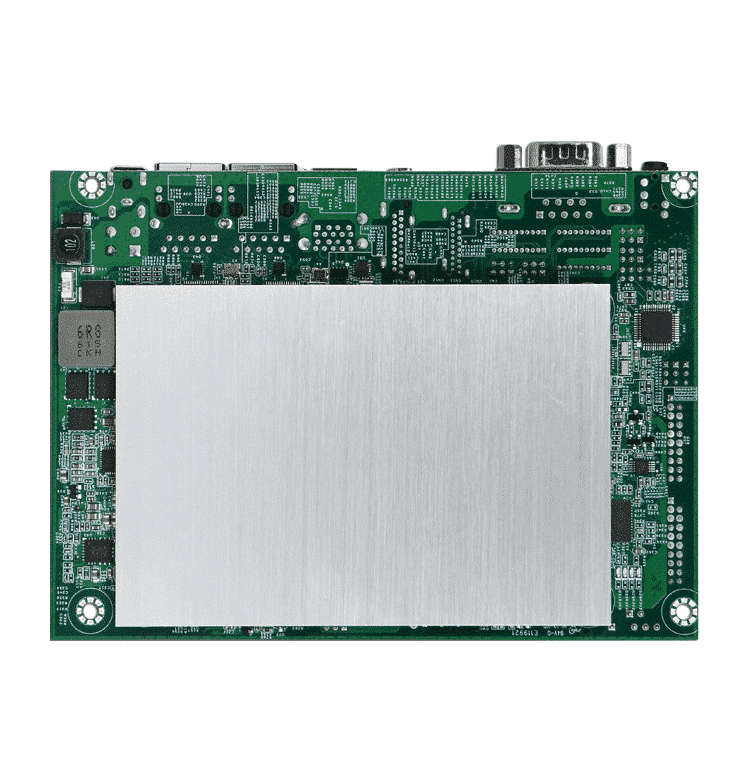

PEB-2773

Apollo Lake Atom® Processor based 3.5’ embedded Board with DDR3L SDRAM, Gigabit Ethernet, 2x mini-PCIe sockets, 6x COM ports and 12~24V DC input

产品特色

  • Supports Intel® Apollo Lake series processor
  • Supports DD3L-1866/1600 MT/s non-ECC SDRAM on one SO-DIMM slot, up to 8GB
  • Supports Triple displays including DP, HDMI, and Dual channel 24bit LVDS
  • Supports mini-PCIe / mSATA (2x mini- PCIe slots)
  • Supports 6x COM ports(REAR IO support RS-232/422/485)

产品描述

PEB-2773 build with Intel® Atom® processor E3900 series. Not only does it operates with TDP under 12W for fan-less applications, but it also supports industrial temperature range from -40°C to 85°C and wide voltage of power input from 12V to 24V.

规格

MODEL PEB-2773
Form Factor 3.5″ Embedded
CPU Intel® Atom® E3900 Family
Chipset N/A
BIOS AMI UEFI
Memory 1x DDR3L SO-DIMM up to 8GB
Expansion 2x mini-PCIe sockets
Display DP/HDMI/LVDS
Audio Realtek ALC892 HDA codec
LAN 2x GbE
Serial Port 1x RS-232/422/485 5x RS-232
USB 6x USB 3.0
Storage Devices 1x SATA
GPIO 8 bit
Others N/A
Dimension 146 x 102mm

订购指南

Ordering Guide
AB1-3E83 (R).PEB-2773. Intel® Apollo Lake SoC on Board.EBC. w/DDR3L/DP/HDMI/GbE/COM/Audio/USB

包装清单

Packing List
One PEB-2773 Main board
One Installation CD
One SATA cable
