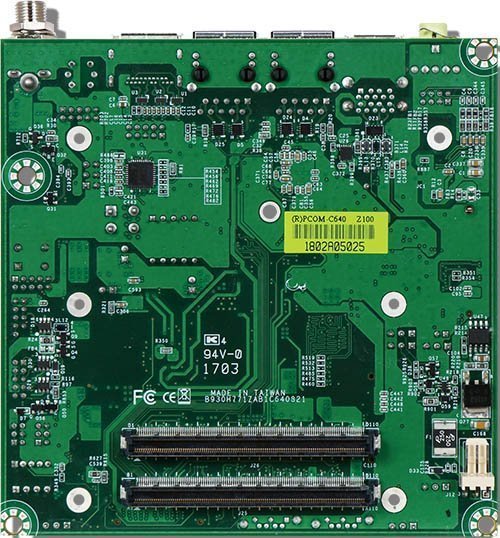

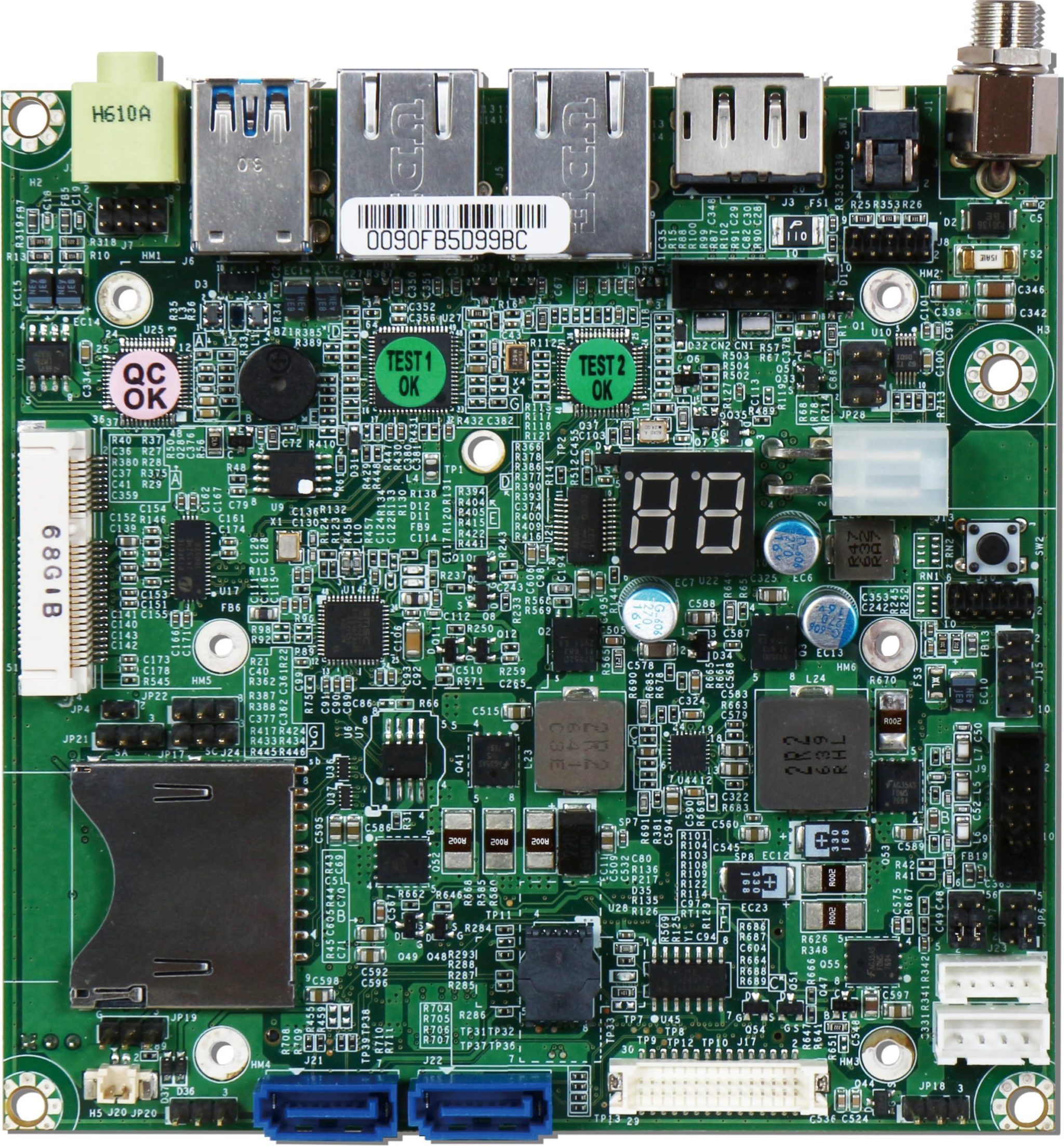

PCOM-C640

PCOM-C640 is NANO-ITX carrier board with triple display, Gigabit Ethernet, Audio, USB 3.0, SATA. It's a powerful carrier which is suitable for system.

产品特色

COM Express^® carrier board is compatible with the Portwell Type VI COM Express modules
NANO-ITX form factor can meet most standard mounting spaces and provide more expansions and displays.
Support Rear I/O, DP, RJ45, USB 2.0 & 3.0

产品描述

Portwell PCOM-C640 is a NANO-ITX form factor carrier with COM Express^® Type VI row connectors. It’s suitable for evaluation testing of Portwell’s Type VI COM Express^® modules for 1U Server system. We also provide carrier board design guide for your own carrier board development as a reference. With PCOM-C640 carrier board, Portwell now has various carriers in different form factors to help customers on developing new platform for both board and system perspectives. Customers can easily begin to develop on new application with Portwell’s COM Express^® Type VI module.

规格

Specifications
CPU	N/A
Format	NANO-ITX (120 x 120mm)
Type	Type 6
Display Interface	Support DisplayPort, pin-header for VGA and LVDS interface
Storage	Two SATA ports, One SD card slot, one mini PCIe slot
Network	Two GbE ports
Serial Interface	1x RS232/422/485, 2x Rx_Tx HDR
USB	Two USB 3.0 ports, Two USB 2.0 ports through pin-header
Audio	High Definition Audio
Firmware	AMI Aptio BIOS (or BIOS on COM Express Module)
Power Requirement	ATX 20 pins power connector
Dimensions	120(L) x 120(W)mm; 4.72”(L) x 4.72”(W)

订购指南

Ordering Guide
Product	Ordering P/N	Status
PCOM-C640	AB1-3D18	Available
