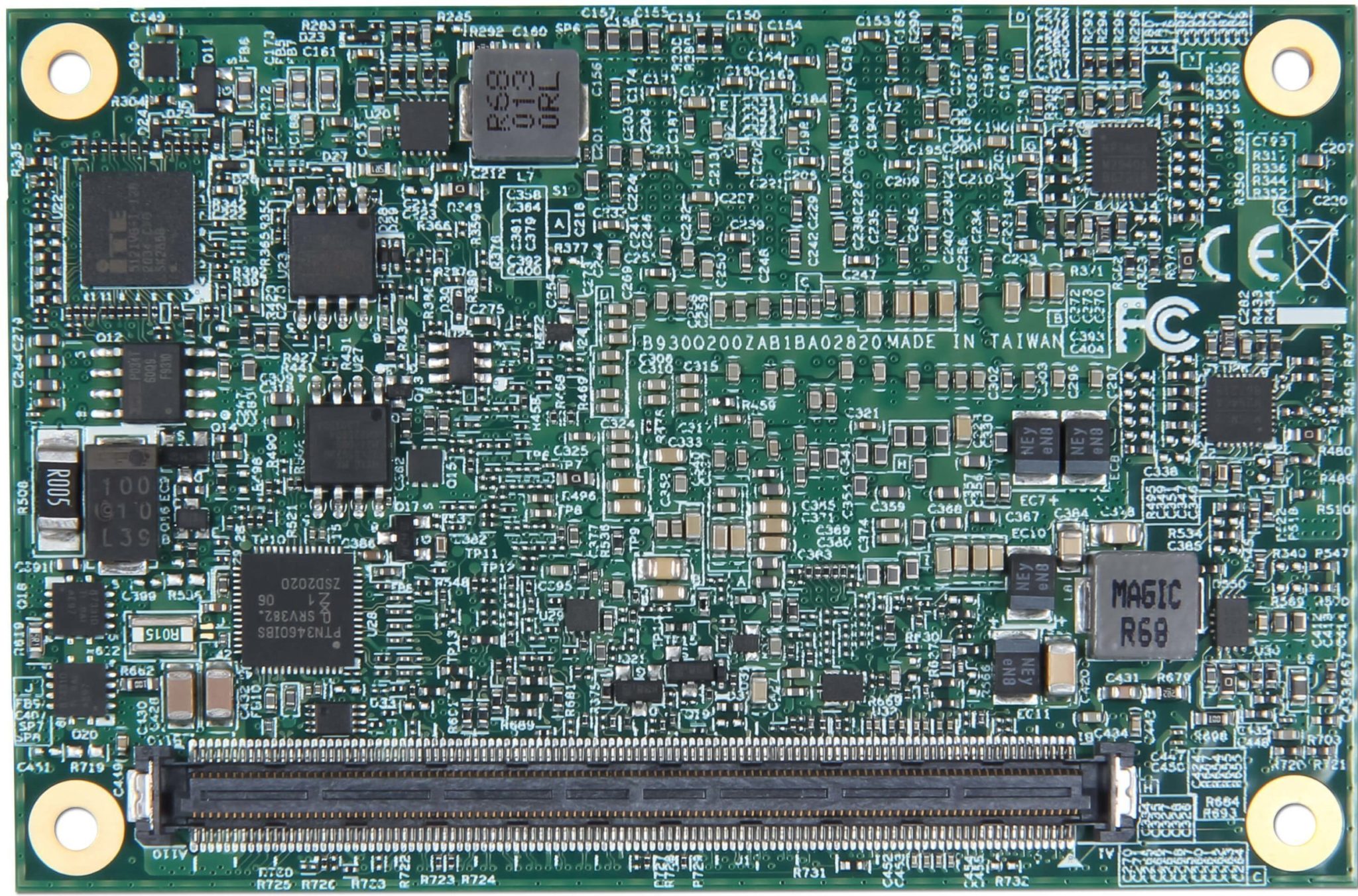

Type 10 Mini COM Express® (84 x 55 mm)模块计算机PCOM-BA02GL搭载英特尔凌动x6000系列、奔腾N与J系列处理器，提供LVDS、HDMI、eDP 与4K解析DP。也提供最高3.0千兆赫兹涡轮模式与扩充4个PCIe 3.0 x 1、2个USB 3.2 Gen2、8个USB 2.0，以及2个SATA III装置. 支持超低功耗 (6~12瓦)宽温，节省能源与高效能，适合自动化、医疗、交通等各种应用领域。
| 产品 | PCOM-BA02GL |
| 规格 | COM Express® Mini (84 x 55mm) |
| COM Type | Type 10 |
| CPU/ Clock/ Cache | Intel® Pentium® J6426 Intel® Celeron® N6211 Intel® Atom® x6211E Intel® Atom® x6413E Intel® Atom® x6425E Intel® Atom® x6425RE Up to 3.00 GHz turbo frequency 1.5MB cache |
| Chipset | SoC |
| Memory | Dual Channel LPDDR4 3200 MT/s Support In Band ECC |
| USB | 2x USB 3.2 Gan2, 8x USB 2.0 |
| PCI Express | 4 x PCIe 3.0 x 1 |
| 以太网络 | 2.5 GbE with GPY215 (x6425RE SKU additional support TSN/TCC) |
| Sound | Intel® High Definition Audio |
| Graphic Controller | Intel® HD Graphics |
| Carrier Board | PCOM-CA00 (Type 10) |
| Product | Ordering P/N | Status |
|---|---|---|
| PCOM-BA02GL-J6426-8G-32G | AB1-3L78 | Contact us |
| PCOM-BA02GL-N6211-4G-16G | AB1-3L77 | Contact us |
| PCOM-BA02GL-x6211E-4G-16G | AB1-3L79 | Contact us |
| PCOM-BA02GL-x6413E-8G-16G | AB1-3L76 | Contact us |
| PCOM-BA02GL-x6425E-8G-32G | AB1-3K47 | Contact us |
| PCOM-BA02GL-x6425RE-8G-16G | AB1-3L75 | Contact us |
| Accessory | Ordering P/N | Status |
|---|---|---|
| Heatsink (Atom) | B830B480 | Available |
| Heatsink (Pentium/Celeron) | B830B490 | Available |
| Heatspreader (Atom) | B830B500 | Available |
| Heatspreader (Pentium/Celeron) | B830B510 | Available |
| PCOM-CA00 (Micro-ATX Carrier board) |
AB1-3917 | Available |
