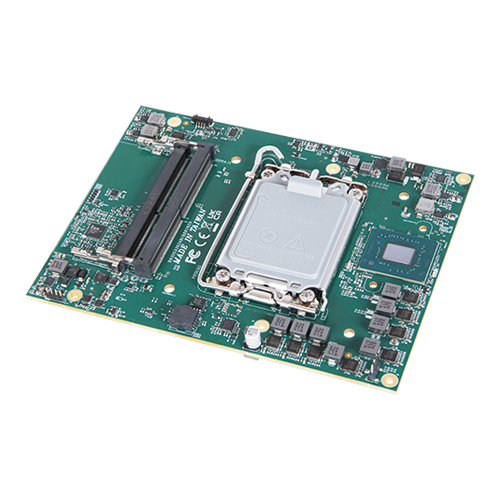

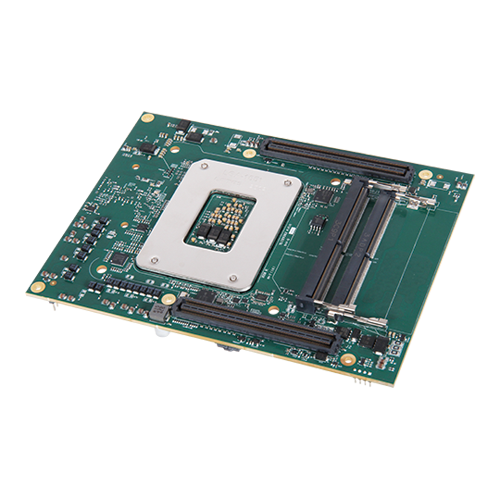

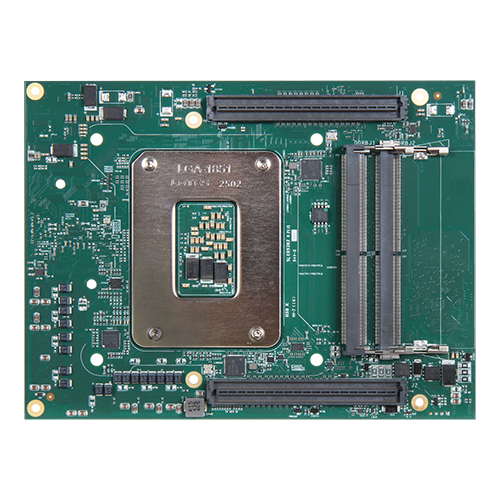

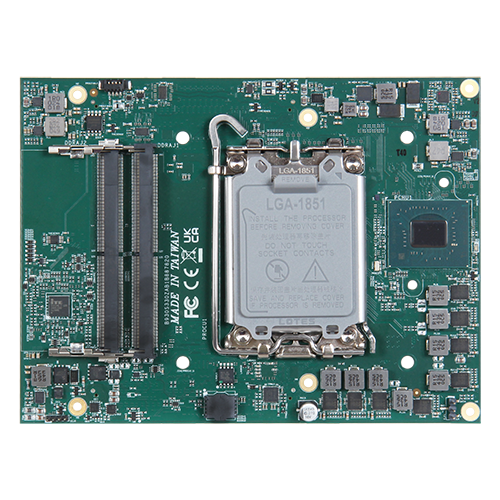

PCOM-B887

Powered by Intel^®Core™ Ultra Series 200S socket processors, this platform delivers high-performance computing with advanced AI acceleration through an integrated NPU. It supports PCIe Gen5 expansion, up to 192GB DDR5 memory, and versatile high-speed I/O including USB4, multiple display outputs, and rich connectivity options—making it ideal for next-generation edge computing and AI-driven applications.

Features

Intel^®Core^TM Ultra Series 200S socket CPU processor
Support PCIe Gen5 x16, PCIe Gen5 x4, PCIe Gen4
4x DDR5 C/SO-DIMM up to 192GB 4800 MT/s
1x USB4, 3x USB 3.2 Gen2, 2x SATA, 3x DDI, eDP
Integrated NPU for dedicated AI acceleration

Model	PCOM-B887
Form Factor	COM-HPC Client Size-C (160x120mm)

General
CPU	Ultra 9 285	Ultra 9 285T	Ultra 7 265	Ultra 7 265T	Ultra 5 245	Ultra 5 245T	Ultra 5 225	Ultra 5 225T
Core/Thread	8P + 16E/24T	8P + 16E/24T	8P + 12E/20T	8P + 12E/20T	6P + 8E/14T	6P + 8E/14T	6P + 4E/10T	6P + 4E/10T
Based Frequency	2.5	1.4	2.4	1.5	3.5	2.2	3.3	2.5
Turbo Frequency	5.6	5.4	5.3	5.3	5.1	5.1	4.9	4.9
Cache	36	36	30	30	24	24	20	20
TDP	65	35	65	35	65	35	65	35
Graphics EU	64	64	64	64	48	48	32	32
Graphics Max Freq.	TBD	TBD	TBD	TBD	TBD	TBD	TBD	TBD
PCH	W880/Q870	W880/Q870	W880/Q870	W880/Q870	W880/Q870	W880/Q870	W880/Q870	W880/Q870
Memory Type/Speed	4x DDR5 SO-DIMM up to 192GB 4800MT/s	4x DDR5 SO-DIMM up to 192GB 4800MT/s	4x DDR5 SO-DIMM up to 192GB 4800MT/s	4x DDR5 SO-DIMM up to 192GB 4800MT/s	4x DDR5 SO-DIMM up to 192GB 4800MT/s	4x DDR5 SO-DIMM up to 192GB 4800MT/s	4x DDR5 SO-DIMM up to 192GB 4800MT/s	4x DDR5 SO-DIMM up to 192GB 4800MT/s
ECC Memory Support	only with W880	only with W880	only with W880	only with W880	only with W880	only with W880	No Support	No Support
Temperature Range	0 ~ 60 °C (32.0 ~ 140.0 °F)	0 ~ 60 °C (32.0 ~ 140.0 °F)	0 ~ 60 °C (32.0 ~ 140.0 °F)	0 ~ 60 °C (32.0 ~ 140.0 °F)	0 ~ 60 °C (32.0 ~ 140.0 °F)	0 ~ 60 °C (32.0 ~ 140.0 °F)	0 ~ 60 °C (32.0 ~ 140.0 °F)	0 ~ 60 °C (32.0 ~ 140.0 °F)
BIOS	AMI BIOS
ECC	(ECC)
Memory	4 x SO-DIMM DDR5 up to 192GB 5600 MT/s

I/O Interface
SATA	2 x SATA III
USB	1 x USB4
	3 x USB 3.2 Gen2
	8 x USB 2.0
Ethernet	2 x 2.5 Gbe LAN
PCIe	1 x Gen5 x16
	1 x Gen5 x4
	3 x Gen4 x4
	1 x PCIe Gen4 x2
	8 x PCIe Gen4 x1
Legacy I/O	12 x GPIO
	2 x I2C
	2 x UART
	1 x SMBus
Security	TPM 2.0
Display	eDP eDP up to HBR3 3840 x 2160@120Hz
Display	DDI 1/2/3 DP up to HBR3 3840 x 2160@120Hz

ME/Environment
Dimension	160 mm x 120 mm (6.30” x 4.72”)
Operating Temperature	0 ~ 60 °C (32.0 ~ 140.0 °F)
Storage Temperature	-40 ~ 85 °C (-40.0 ~ 185.0 °F)
Certification	FCC
OS	Windows 11, Ubuntu 20.04
Portwell Special Feature	PET

Ordering Guide

Category	Product	P/N	Description	Status
COM-HPC	PCOM-B887-W880E	AB1-3T65	COM-HPC Client Module. Size C.	Available
Accessroy	Cooler (1U)	B9972080	B887 1U Cooler	Available
Accessory	Cooler (2U)	B9972100	B887 2U Cooler	Available
Accessory	Cooler (backplate)	B723M670	B887 Cooler backplate	Available
Carrier Board	PCOM-C881	AB1-3S83Z	COM-HPC Carrier	Available
