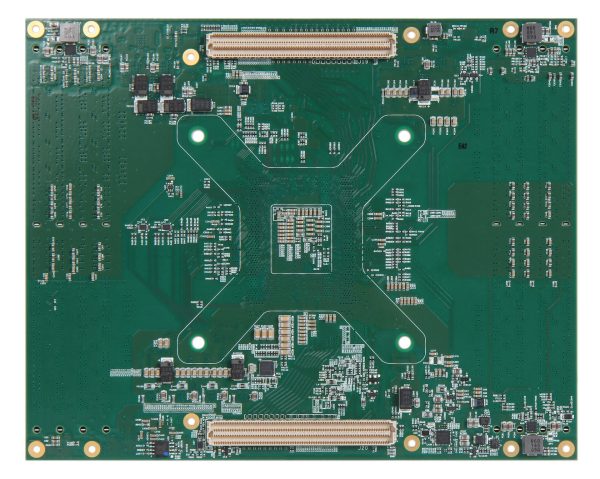

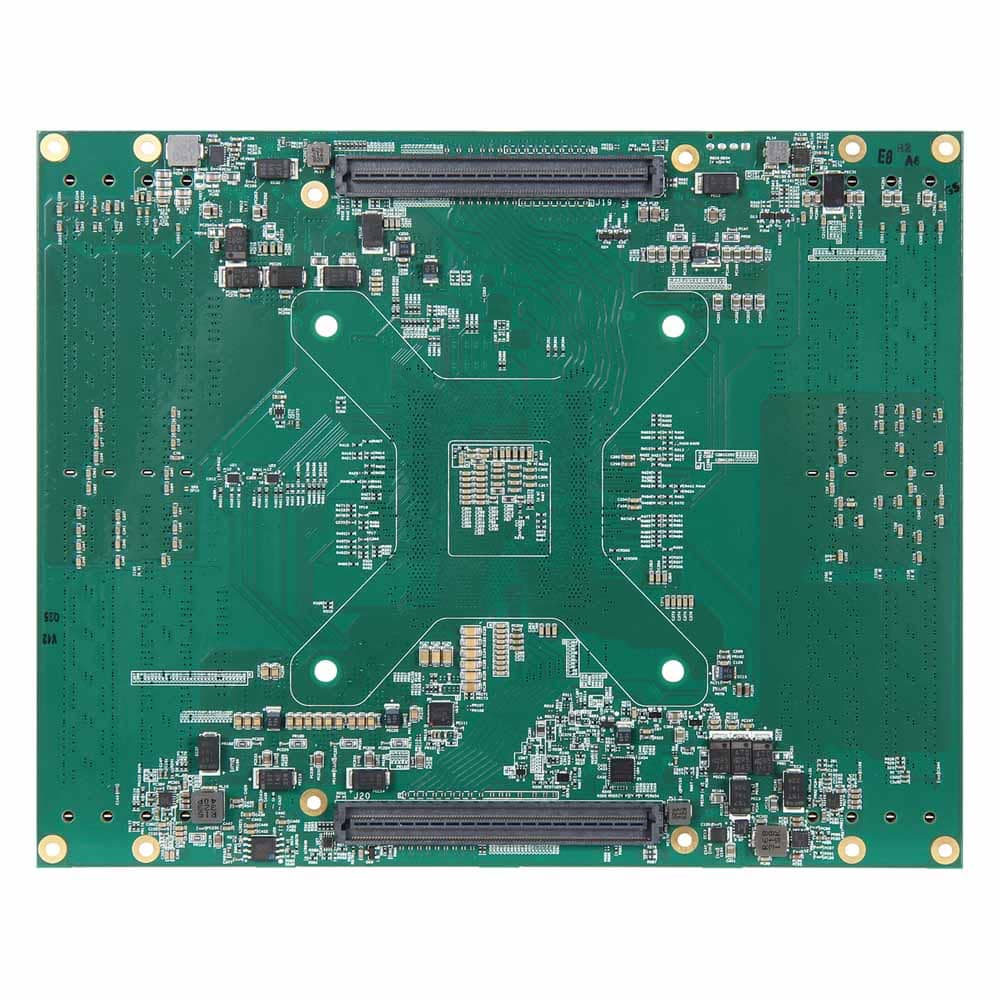

PCOM-B800GT，COM-HPC 服务器，尺寸 E 模块 (200mm x 160mm)，基于 Intel® Xeon® D-2700 处理器。该平台包括 Intel® Deep Learning Boost (Intel® DL Boost)，以加速 int8 工作负载的处理具有从 4 个内核到 20 个内核的选项。 多操作系统支持，包括实时操作系统和管理程序支持，让您将工作负载整合到单个设备上。PCOM-B800GT，提供多达 8 个 10G KR 接口、32 个通道 PCIe 4.0、16 个通道 PCIe 3.0、TPM 2.0 和 8 个 DDR4 DIMM 插 槽，支持最大 1024GB 内存大小，以满足虚拟化工作整合边缘环境。
| General | ||
| Product | PCOM-B800GT | |
| Form Factor | COM-HPC Server, Size E (200mm x 160mm) | |
| Processor | Intel® Xeon® D-2700 Family | |
| Ethernet | Intel® I226LM / I226IT | |
| BIOS | AMI BIOS | |
| ECC | Yes | |
| Memory | 8x DDR4 DIMMs up to 1024GB at 2933 MT/s with RDIMM | |
| I/O Interface | ||
| SATA | 2 x SATA III | |
| USB | 4 x USB 3.2 Gen1/USB 2.0 | |
| Ethernet |
4x 25/10G KR / 8x 10G KR (Depend on SKU) 2.5 GbE LAN with TSN |
|
| Serial I/O | GPIO | 12 bit GPIO |
| I2C | Frequency : 100kHz – 1MHz | |
| SMBus | Frequency : 100kHz – 1MHz | |
| UART | 2 Serial Port (TX/RX/CTS/RTS) | |
| PCI Express | 32x PCIe 4.0 from IIO 16x PCIe 3.0 from HSIO |
|
| Display | N/A | |
| Security | TPM 2.0, Intel®AES | |
| MECHANICAL & ENVIRONMENT | ||
| Dimension | 200mm x 160mm | |
| Power DC IN | Normal: +12V DC AT/ATX mode |
|
| Storage Temperature | -40°C to 80°C | |
| Operating Temperature | -40°C to 80°C (Selected SKUs: 0°C to 60°C ) |
|
| Certification | Contact us | |
| MTBF | TBD | |
| Vibration | TBD | |
| OS | Windows10 IoT Enterprise LTSC Windows Server Linux |
|
| Product | Ordering P/N | Status |
|---|---|---|
| PCOM-B800GT-D2796TE | AB1-3L51Z | In Development |
| PCOM-B800GT-D2775TE | AB1-3P11Z | In Development |
| PCOM-B800GT-D2752TER | AB1-3P12Z | In Development |
| PCOM-B800GT-D2733NT | AB1-3P13Z | In Development |
| PCOM-B800GT-D2712T | AB1-3P14Z | In Development |
| Accessory | Ordering P/N | Status |
|---|---|---|
| Cooler for 2U System | TBD | In Development |
| Cooler for 1U System | TBD | In Development |
| Heat-sink | TBD | In Development |
