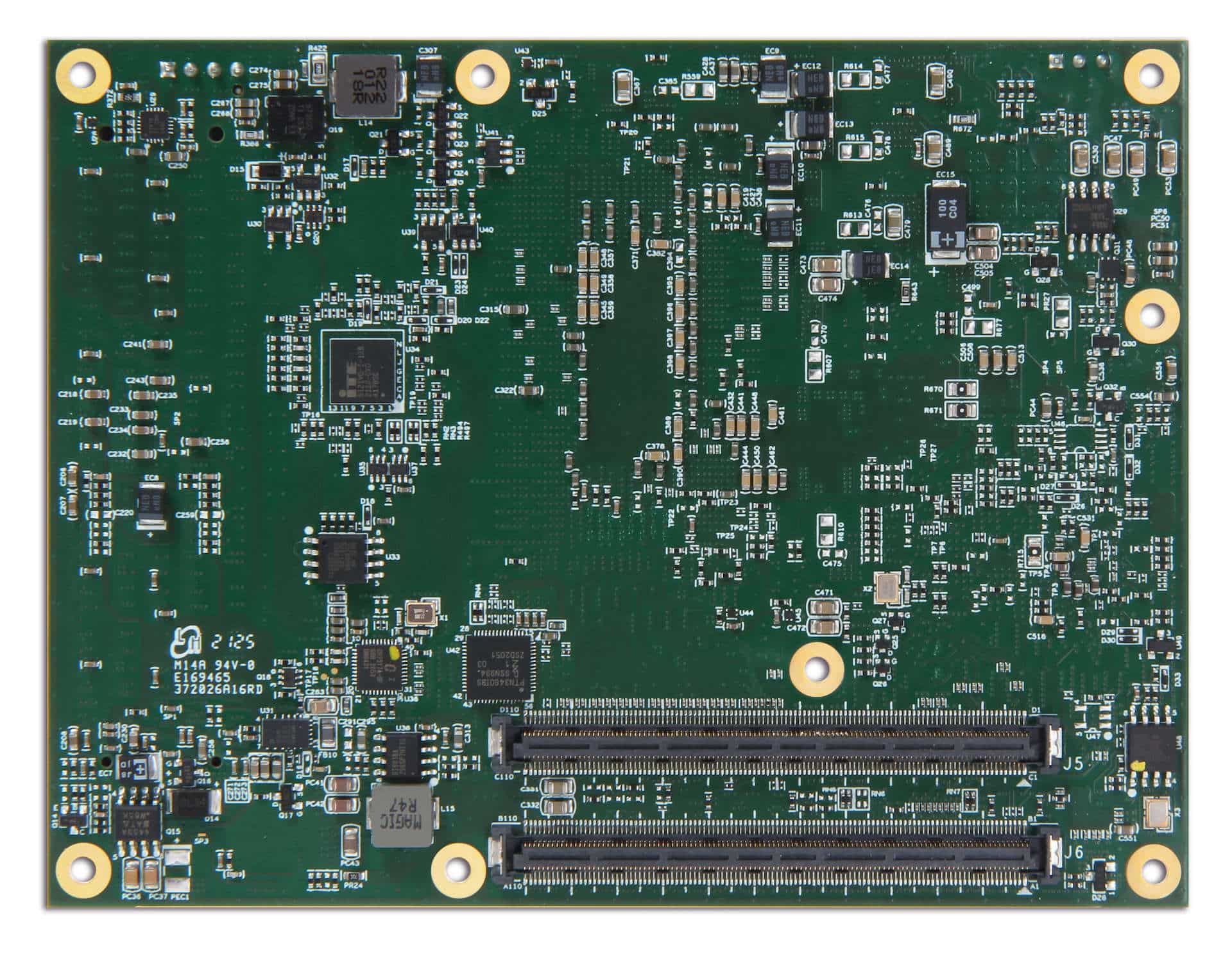

Type 6 COM Express® 模块计算机PCOM-B657VGL搭载英特尔第11代H处理器并与COMe 3.0 Type 6 carrier板兼容，平台采用10nm++处理与VNNI指令 集，提供进阶运算能力与45~25瓦热能，并符合广大工业用范围条件。PCOM-B657VGL支持PCIe Gen 4.0 x16、修正错误内存与非修正错误内存DDR4(依 不同型号)，搭配TSN技术，适合人工智能边缘运算所需的条件 。本模块计算机提供8x PCIe x1 (可选择2x PCIe x4 并支持PCIe储存)、四个USB 3.2 Gen2 x1 与四个SATA III。 完全整合并具弹性的输入/输出容量也满足工业应用的多样需求。
| Model Name | PCOM-B657VGL |
| Form Factor (mm) | COM Express® Basic (125 x 95mm) |
| COM Type | Type 6 |
| CPU/ Clock/ Cache | i7-11850HE, 8C/16T, 2.6GHz, 24MB i5-11500HE, 6C/12T, 2.6GHz, 12MB i3-11100HE, 4C/8T, 2.4GHz, 8MB Celeron 6600HE, 2C/2T, 2.6GHz, 8MB W-11865MRE, 8C/16T, 2.6GHz, 24MB W-11555MRE, 6C/12T, 2.6GHz, 12MB W-11155MRE, 4C/8T, 2.4GHz, 8MB W-11865MLE, 8C/16T, 1.5GHz, 24MB W-11555MLE, 6C/12T, 1.9GHz, 12MB W-11155MLE, 4C/8T, 1.8GHz, 8MB |
| Chipset | RM590E / QM580E |
| Memory | DDR4 3200 MT/s Dual Channel Non-ECC / ECC (W-11000 Series) |
| Display | 3*DDI, LVDS/eDP, VGA |
| Storage | 4*SATA |
| USB | 4 x USB 3.2 Gen2 x1 8 x USB 2.0 |
| PCI Express | 1 x PCIe 4.0 x16 (1 x16, 2 x8, or 1 x8 + 2 x4) 8 x PCIe 3.0 x1 (8 x1, 4 x1 + 1 x4, or 2 x4) Support Intel RST for PCIe Storage for both x4 Link |
| Ethernet | Intel I225 Family (2.5G) |
| Sound | Intel® High Definition Audio |
| Graphic Controller | Intel® UHD Graphics |
| Carrier Board | PCOM-C605 PCOM-C60B |
| Product | Ordering P/N | Status |
|---|---|---|
| PCOM-B657VGL-11850HE | AB1-3L58 | Available |
| PCOM-B657VGL-11500HE | AB1-3L67 | Available |
| PCOM-B657VGL-11100HE | AB1-3L65 | Available |
| PCOM-B657VGL-6600HE | AB1-3L66 | Available |
| PCOM-B657VGL-11865MRE | AB1-3L57 | Available |
| PCOM-B657VGL-11555MRE | AB1-3L64 | Available |
| PCOM-B657VGL-11155MRE | AB1-3L63 | Available |
| PCOM-B657VGL-11865MLE | AB1-3L59 | Available |
| PCOM-B657VGL-11555MLE | AB1-3L62 | Available |
| PCOM-B657VGL-11155MLE | AB1-3L61 | Available |
| Accessory | Ordering P/N | Status |
|---|---|---|
| Cooler (spring loaded copper slog) | B9972030 | Available |
| Cooler (Aluminum) | B9972050 | Available |
| Heatsink (spring loaded copper slog) | B830B680 | Available |
| Heatsink (Aluminum) | B830B670 | Available |
| Heatspreader (whole copper) | B830B650 | Contact Us |
| Heatspreader (Aluminum) | B830B660 | Contact Us |
| Carrier (Mini-ITX) PCOM-C605 |
AB1-3998 | Available |
| Evaluation Carrier (ATX) PCOM-C60B |
AB1-3G22 | Available |
