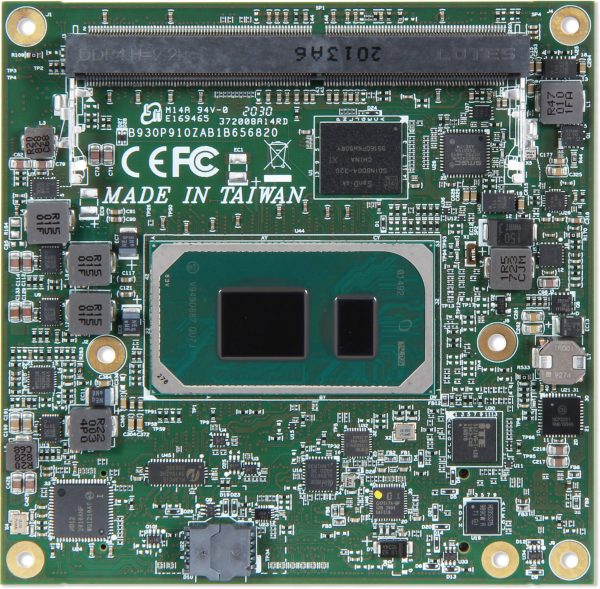

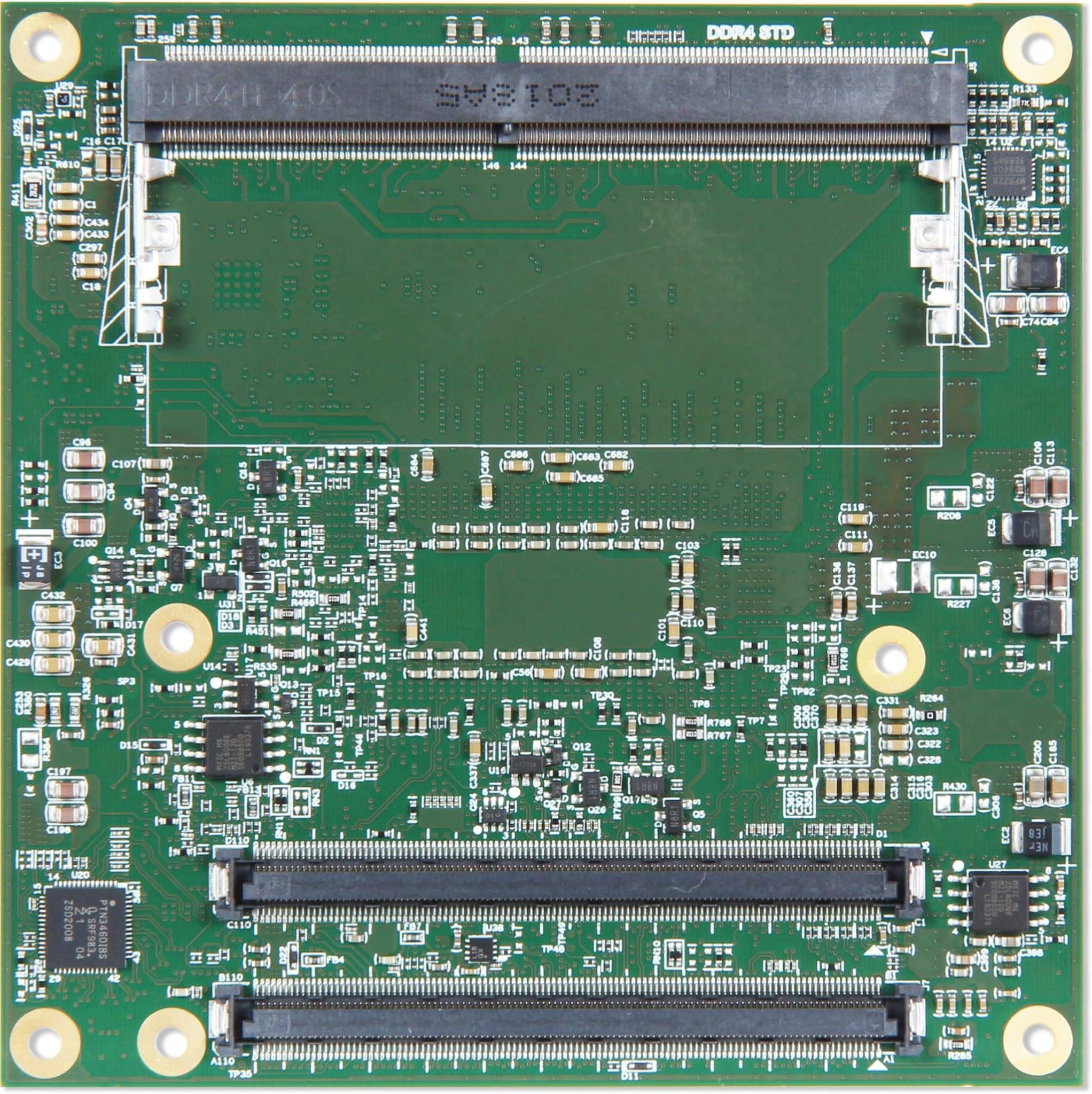

Type 6 COM Express® 模块计算机PCOM-B656VGL搭载英特尔酷睿与赛扬处理器并与COMe 3.0 Type 6 carrier板兼容，支持DDR4内存、PCIe Gen4与USB 3.2 Gen2 x1。PCOM-B656VGL延伸的PCIe Gen3埠也支持高速输入/输出卡以满足更多应用。
| Model Name | PCOM-B656VGL |
|---|---|
| Form Factor (mm) | COM Express® Compact (95 x 95mm) |
| COM Type | Type 6 |
| CPU/Clock/Cache | Intel® 11th Generation CoreTM* Intel® i7-1185GRE/i7-1185G7E Intel® i5-1145GRE/i5-1145G7E Intel® i3-1115GRE/i3-1115G4E Celeron® 6305E* Up to 4 CPU cores* 4MB to 12MB cache* |
| Chipset | SoC |
| Memory | DDR4 SO-DIMM |
| USB | 4x USB 3.2 Gen2x1 8x USB 2.0 |
| PCI Express |
1x PCIe Gen3 x4/2x PCIe Gen3 x2/4x PCIe Gen3 x1/1x PCIe Gen3 x2 + 2x PCIe Gen3 x1 |
| Ethernet | Intel® I225LM/IT |
| Sound | Intel® High Definition Audio |
| Graphic Controller | Intel Iris |
| Carrier Board | PCOM-C60B |
| Product | Ordering P/N | Status |
|---|---|---|
| PCOM-B656VGL-1185G7E | AB1-3L45 | Available |
| PCOM-B656VGL-1185GRE | AB1-3L28 | Available |
| PCOM-B656VGL-1145G7E | AB1-3L47 | Available |
| PCOM-B656VGL-1145GRE | AB1-3L48 | Available |
| PCOM-B656VGL-1115G4E | AB1-3L49 | Available |
| PCOM-B656VGL-1115GRE | AB1-3L46 | Available |
| PCOM-B656VGL-6305UE | AB1-3L50 | Available |
| Accessory | Ordering P/N | Status |
|---|---|---|
| PCOM-C60B (ATX Carrier Board) |
AB1-3G22 | Available |
| Cooler | B9972040 | Available |
| Heat Sink | B830B270 | Available |
| Heat Spreder | B830B280 | Available |
