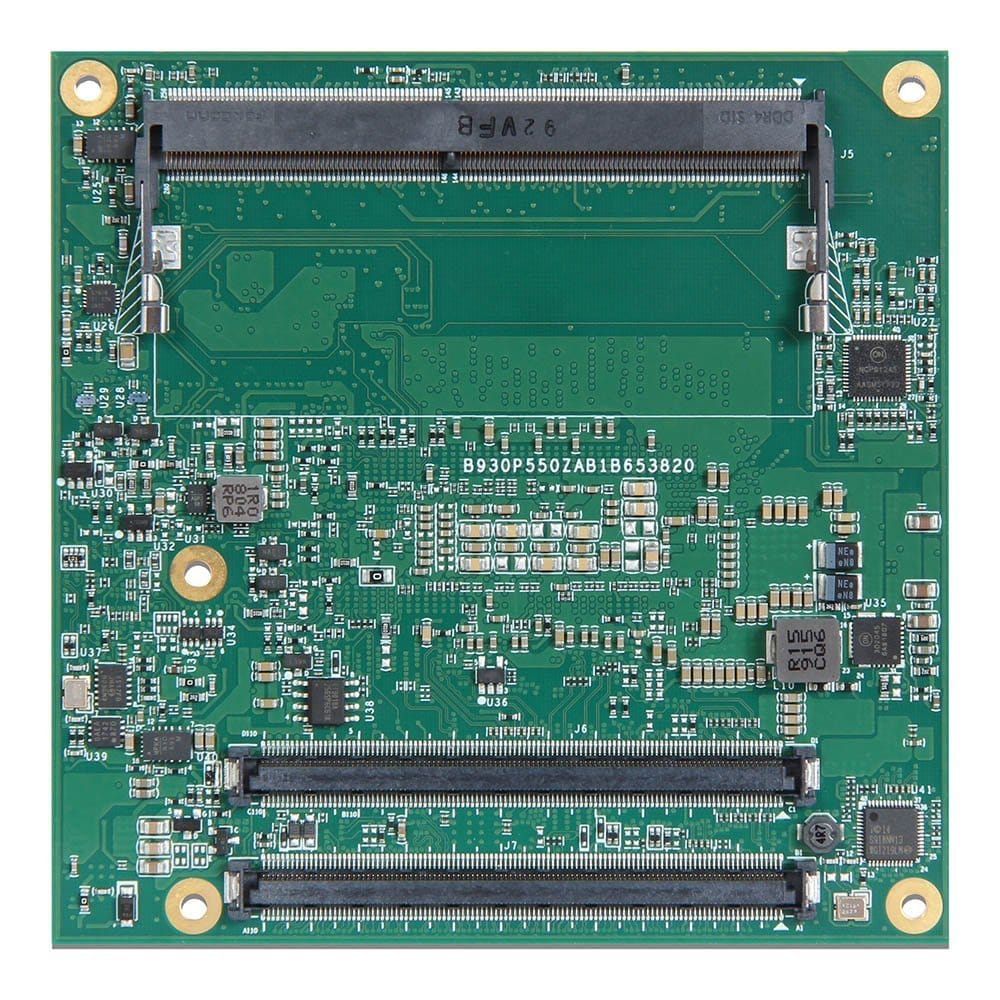

Type 6 Compact COM Express® 模块计算机PCOM-B653VGL搭载英特尔酷睿i3/i5/i7/与赛扬处理器，支持DDR4内存、PCIe Gen3与USB 3.1 Gen2 。PCOM-B653VGL延伸的PCIe Gen3埠也支持高速输入/输出卡以满足更多应用，也与COMe 3.0 Type 6 carrier板兼容。
| Model Name | PCOM-B653VGL |
| Form Factor (mm) | Compact (95 x 95mm) |
| COM Type | Type 6 |
| CPU/ Clock/ Cache | Intel® Core™ i7-8665U Intel® Core™ i5-8365U Intel® Core™ i3-8145U Intel® Celeron® Processor 4305U 3.90 GHz to 4.40 GHz (Turbo) 2MB to 8MB cache |
| Chipset | SoC |
| Graphic Controller | Intel® HD Graphics 610 Intel® HD Graphics 620 |
| Memory | DDR4 SO-DIMM up to 32GB 2400 MT/s Non-ECC Dual Channel |
| Storage | 2x SATA III |
| USB | 4x USB 3.2 Gen2 8x USB 2.0(Option 1x OTG) |
| PEG | 4x PCIe 3.0 x 1 |
| PCI Express | 5x PCIe 3.0 x 1 1x PCIe 3.0 x 1(Option) |
| Ethernet | 1x Gigabit Ethernet Intel® I219LM |
| Audio | Intel® High Definition Audio |
| Operating Temperature | 0C° to 60°C |
| Carrier Board | PCOM-C605 (Mini-ITX) PCOM-C60B (ATX) |
| Product | Ordering P/N | Status |
|---|---|---|
| PCOM-B653VGL-8665UE | AB1-3E39 | Availabl |
| PCOM-B653VGL-8365UE | AB1-3E38 | Availabl |
| PCOM-B653VGL-8145UE | AB1-3E32 | Availabl |
| PCOM-B653VGL-4305UE | AB1-3E77 | Availabl |
| Accessory | Ordering P/N | Status |
|---|---|---|
| Cooler | B9971821 | Availabl |
| Heat Sink | TBD | Contact us |
| Heat Spreader | B830A560 | Available |
| PCOM-C605(Min-ITX Carrier board) | AB1-3998 | Available |
| PCOM-C60B(ATX Carrier board) | AB1-3G22Z | Contact us |
