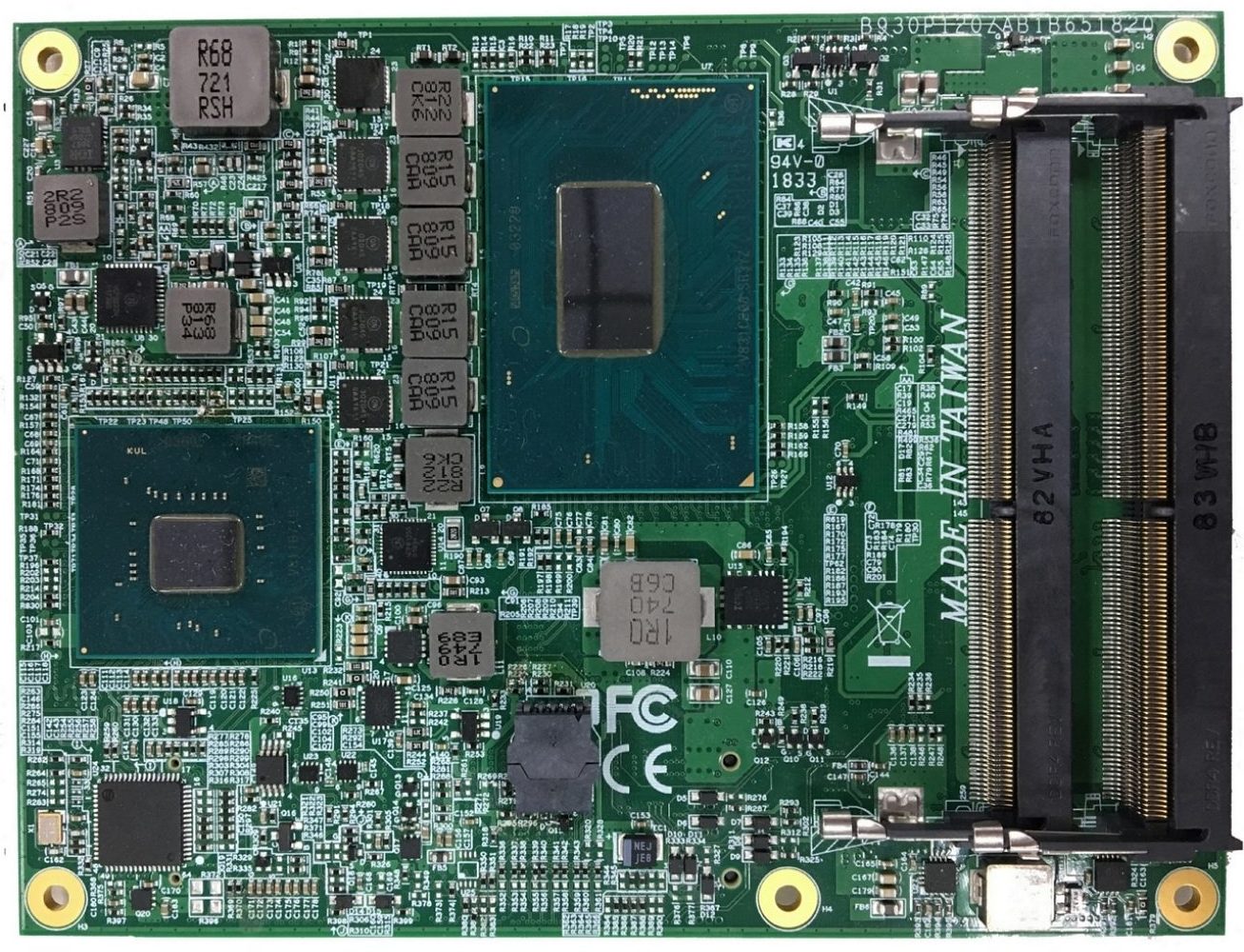

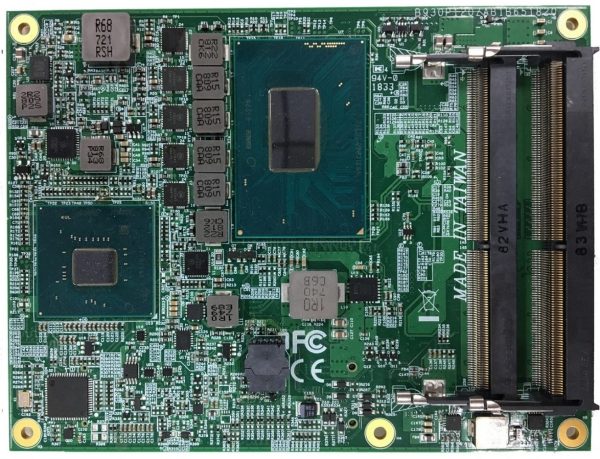

PCOM-B651VGL is Intel® Coffee Lake-H platform COM Express module. It is compatible with COMe 3.0 Type 6 carrier board. The 8th Generation Intel® Core™ processor family is able to fulfill the applications demand on high proformance. This module supports both ECC and Non-ECC DDR4 memory by different PCH SKUs(QM370/CM246). Customers have various models to meet different requirements in cost, performance, and memory type. PCOM-B651VGL provides one PCIex16, eight PCIex1 (Option to one PCIex4), four USB 3.1 Gen2, and four SATA III.
| Model Name | PCOM-B651VGL |
|---|---|
| Form Factor (mm) | COM Express®Basic (125 x 95mm) |
| COM Type | Type 6 |
| CPU/ Clock/ Cache | Intel® 8thGeneration Core™ E-2176M* Intel® i7-8850H Intel® i5-8400H Intel® i3-8100H Up to 6 CPU cores* 6MB to 12MB cache* |
| Chipset | QM370/CM246 |
| Memory | DDR4 2666MT/s* Non-ECC/ECC* Dual Channel* |
| USB | 4x USB 3.1 Gen2 8x USB 2.0 |
| PCI Express | 1x PCIe 3.0 x16 8x PCIe 3.0 x1 |
| Ethernet | Intel® I210IT |
| Sound | Intel® High Definition Audio |
| Graphic Controller | Intel® UHD Graphics P630* Intel® UHD Graphics 630* |
| Carrier Board | PCOM-C60B (Type 6) |
| Product | Ordering P/N | Status |
|---|---|---|
| PCOM-B651VGL-2176M | AB1-3J55Z | Contact us |
| PCOM-B651VGL-8850H | AB1-3J08Z | Contact us |
| PCOM-B651VGL-8400H | AB1-3J09Z | Contact us |
| PCOM-B651VGL-8100H | AB1-3J54Z | Contact us |
| Accessory | Ordering P/N | Status |
|---|---|---|
| PCOM-C605(Mini-ITX Carrier Board) | AB1-3998 | Available |
| PCOM-C60B(ATX Carrier Board) | AB1-3G22Z | Contact us |
| Cooler | B9971840 | Available |
