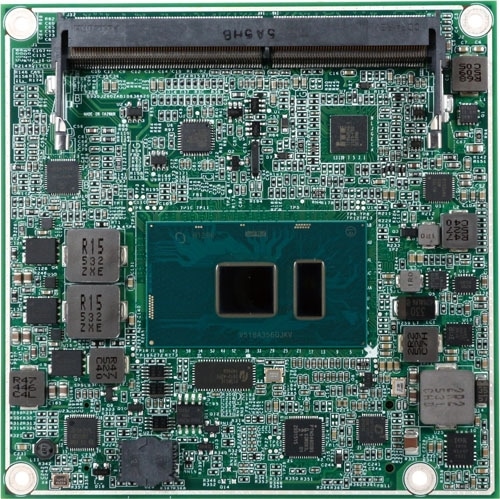

PCOM-B644VG brings three important factors, DDR4 memory support, Gen3 PCIe support, and 30% faster graphic performance. The Gen3 PCIe support provides faster PCIe speed so that the performance of PCIe expansion card will be better. It is crucial for Networking and Medical related applications. The enhanced graphic performance brings 4K support. The OTG support gives customer more flexibilities on developing new applications in different usages.
| Form Factor (mm) | Compact (95 x 95mm) |
| Type | Type 6 |
| CPU/Clock/Cache | Intel® 7th Genera. on Core™ ULT CPU |
| Chipset | SoC |
| Memory | DDR4‐2133MT/s Non‐ECC 2 Memory Channel |
| USB | 3 x USB 3.0 7 x USB 2.0 1 x USB 3.0 / USB 2.0 / OTG |
| PCI Express | 1 x PCIe x4 (PEG) 1 x PCIe x1 1 x PCIe x4 / 4 x PCIe x1 |
| Ethernet | Intel® I219LM |
| TBD | PCOM-B644VG.TYPE VI.Skylake-U.Compact Form Factor.Com Express Module.DDR4 |
