PCOM-B637VG
Menu

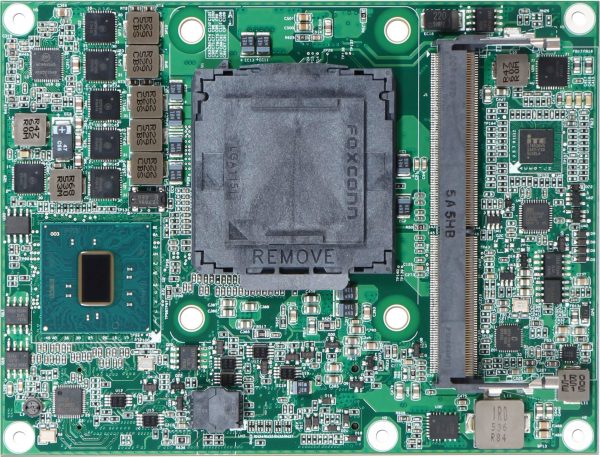

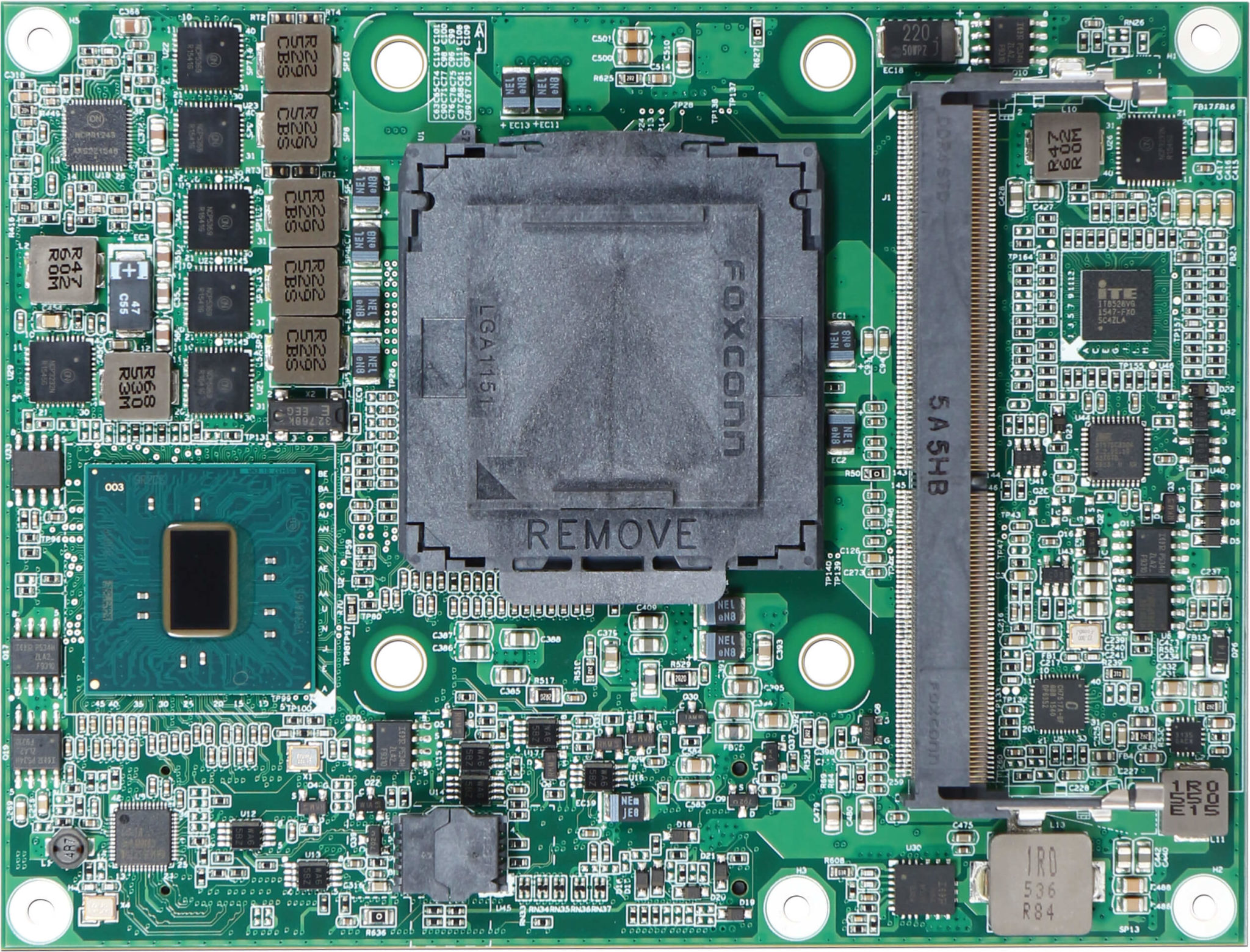

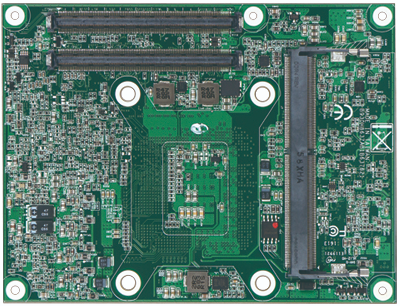

PCOM-B637VG is Portwell’s first module with desktop CPU. It provides customers four important factors, high performance with affordable cost, DDR 4 memory support, Gen 3 PCIe support, and 30% faster graphic performance. The desktop CPU on module is a new idea which offers customer higher computing power but lower cost comparing to mobile solutions. The DDR4 support is also another important point for higher performance. PCOM-B637VG can support both ECC and Non-ECC DDR4 by different PCH SKUs. This is good for different applications. The Gen 3 PCIe support provides faster PCIe speed so that the performance of PCIe devices will be better. It is crucial for Networking and Medical related applications. PCOM-B637VG provides one PCIe x16, eight PCIe x1 (Option to one PCIe x4), four USB 3.0, and four SATA3.
| CPU | Intel® Core™ i7-6700TE Processor (4 x 2.40 GHz / 3.40 GHz, 8 MB SmartCache, 35 W) Intel® Core™ i5-6500TE Processor (4 x 2.30 GHz / 3.30 GHz, 6 MB SmartCache, 35 W) Intel® Core™ i3-6100TE Processor (2 x 2.70 GHz, 4 MB SmartCache, 35 W) Intel® Core™ i7-6700T Processor (4 x 2.80 GHz / 3.60 GHz, 8 MB SmartCache, 35 W) Intel® Core™ i5-7600T Processor (4 x 2.80 GHz / 3.70 GHz, 6 MB SmartCache, 35 W) Intel® Core™ i5-7400T Processor (4 x 2.40 GHz / 3.00 GHz, 6 MB SmartCache, 35 W) Intel® Core™ i3-7300T Processor (2 x 3.50 GHz, 4 MB SmartCache, 35 W) Intel® Core™ i3-7100T Processor (2 x 3.40 GHz, 3 MB SmartCache, 35 W) Intel® Core™ i5-6600T Processor (4 x 2.70 GHz / 3.50 GHz, 6 MB SmartCache, 35 W) Intel® Core™ i5-6500T Processor (4 x 2.50 GHz / 3.10 GHz, 6 MB SmartCache, 35 W) Intel® Core™ i5-6400T Processor (4 x 2.20 GHz / 2.80 GHz, 6 MB SmartCache, 35 W) Intel® Core™ i3-6300T Processor (2 x 3.30 GHz, 4 MB SmartCache, 35 W) Intel® Core™ i3-6100T Processor (2 x 3.20 GHz, 3 MB SmartCache, 35 W) Intel® Pentium® Processor G4400T (2 x 2.90 GHz, 3 MB SmartCache, 35 W) Intel® Pentium® Processor G4500T (2 x 3.00 GHz, 3 MB SmartCache, 35 W) Intel® Pentium® Processor G4560T (2 x 2.90 GHz, 3 MB, 35 W) |
| Format | Basic |
| Type | Type 6 |
| Chipset | Intel® Q170, H110, C236 |
| DRAM | Up to 32GB DDR4-2133 on two 204-pin SO-DIMM sockets, Non-ECC / ECC |
| Graphic Controller | Intel® HD Graphics 630 (Kaby Lake) Intel® HD Gen9 Graphics 510/530 (Skylake), Support DX 11/12, OpenGL 4.3/4.4, ES 2.0, OpenCL 2.x |
| Display Interface | VGA (1920×1200 @ 60 Hz) 3x DDI HDMI/DP (1 optional) DP 3840×2160 @ 60 Hz HDMI 3840×2160 @ 60Hz |
| Storage | 4x SATA III (6Gbit/s) |
| Network | 1x Gigabit Ethernet Intel® I219LM |
| Bus Interface | 8x PCIe x1 Gen3 (four x 1 can be configured to on x4 lane), 1x PCIe x16 Gen3 |
| Serial Interface | 1x RX/TX |
| USB | 8x USB 2.0, 4x USB 3.0 |
| Audio | Intel® HD Audio |
| Miscellaneous | GPIO 8bit,Watchdog Timer,HW monitoring CPU, voltage, fan and temperature |
| Firmware | AMI Aptio BIOS |
| Power Requirement | 12VDC, 5V STBY, VBAT, Support AT and ATX mode |
| Power from W | depends on used CPU |
| Operating Temperature | 0C° to +60°C |
| Extended Temperature | optional |
| Dimensions | 125×95 mm |
| Product | Ordering | P/N Status |
|---|---|---|
| PCOM-B637VG-Q170 | AB1-3E37 | Available |
| PCOM-B637VG-H110 | AB1-3E34 | Available |
| PCOM-B637VG-C236 | AB1-3E36 | Available |
| Accessory | Ordering P/N | Status |
|---|---|---|
| PCOM-C605 carrier board | AB1-3998 | Available |
| PCOM-B637VG Cooler | B9971421 | Available |
| PCOM-B637VG Heat Sink | B8308650 | Available |
