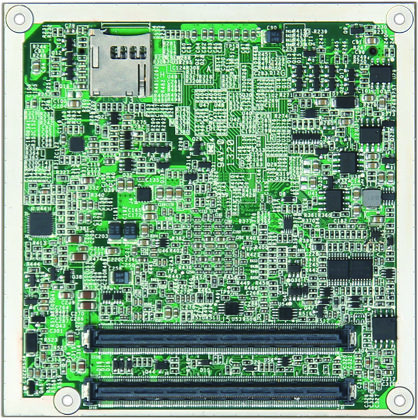

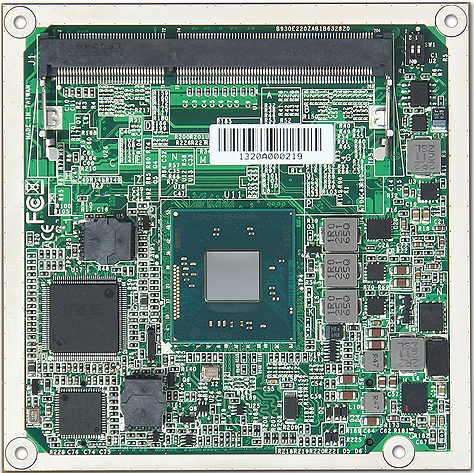

PCOM-B632VG
Intel® Atom® Bay trail series SoC based on Type 6 COMExpress® module with DDR3L 1x SD-DIMM Socket
Menu
Intel® Atom® Bay trail series SoC based on Type 6 COMExpress® module with DDR3L 1x SD-DIMM Socket
PCOM-B632VG, a type 6 compact COM Express® (95 x 95 mm) module which was based on Intel® Atom® Bay Trail E3800 series SoC. In this architecture, it could provide VGA, eDP and DP multiple displays, and expandability I/O interfaces, included 3x PCIe 2.0 x 1, 1x USB 3.0, 4x USB 2.0, 2x serial ports and 2x SATA II devices. With ultra low power consumption design(5 to 10W), wide-temp support, it could provide very energy saving solution to different market, such as retail, transportation and automation.
| Model Name | PCOM-B632VG |
| Form Factor (mm) | Compact (95 x 95mm) |
| COM Type | Type 6 |
| CPU/ Clock/ Cache | Intel® Atom® E3845 Intel® Atom® E3827 Intel® Atom® E3826 Intel® Atom® E3825 Intel® Atom® E3815 1.33GHz up to 1.91GHz 1MB to 2MB cache |
| Chipset | SoC |
| Graphic Controller | Intel® HD Graphic Z3700 |
| Memory | DDR3L SO-DIMM up to 1333 MT/s Non-ECC Single Channel |
| Storage | 2x SATA II |
| USB | 1x USB 3.0 4x USB 2.0 |
| PEG | N/A |
| PCI Express | 3x PCIe 2.0 x1 |
| Ethernet | I210IT |
| Audio | High Definition Audio |
| Operating Temperature | -40C° to 85°C |
| Carrier Board | PCOM-C605 (Mini-ITX) PCOM-C60B (ATX) |
| Product | Ordering P/N | Status |
|---|---|---|
| PCOM-B632VG-E3845 | AB1-3A36 | Available |
| PCOM-B632VG-E3827 | AB1-3A33 | Available |
| PCOM-B632VG-E3826 | AB1-3A34 | Available |
| PCOM-B632VG-E3825 | AB1-3A35 | Available |
| PCOM-B632VG-E3815 | AB1-3A40 | Available |
| Accessory | Ordering P/N | Status |
|---|---|---|
| Heat Sink | B8308040 | Available |
| Heat Spreader | B8307650 | Available |
| PCOM-C605(Mini-iTX Carrier Board) | AB1-3998 | Available |
| PCOM-C60B(ATX Carrier Board) | AB1-3G22Z | Contact us |
