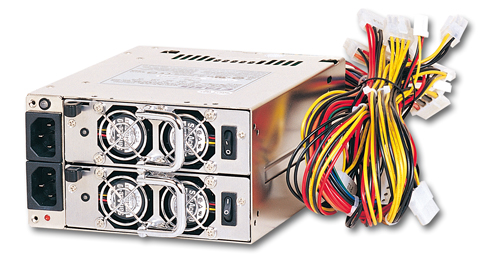

ORION-D4602P

460W+460W mini-redundant with active PFC power supply

产品特色

  • Mini-redundant power supply suitable for 2U/4U and larger chassis
  • Active PFC, full-range input
  • Two independent AC inputs

规格

Specifications
Input Voltage 90V ~ 264V AC, full range
Input Frequency 47 ~ 63 Hz
Input Current 9A@115V, 5A@230V
Efficiency > 65%
Holdup Time 20 ms. at full load
Over Voltage Protection +5V: 5.6 ~ 6.5V; +3.3V: 3.8 ~ 4.3V; +12V: 13.6 ~ 15.6V
Over Power/ Load Protection Output power over 110% ~ 130% on +3.3V/+5V; 120% ~ 150% on +12V
MTBF 100,000 hrs
EMI & Safety Approval UL, TUV
Temperature/ Humidity Operating: 0 ~ 40°C, 20% ~ 90%RH Storage: -40 ~ 70°C, 5% ~ 95%RH
Dimension (WxDxH) 150 x 190 x 85 mm; 5.9” x 7.5” x 3.3”

订购指南

Ordering Guide
ORION-D4602P 460W+460W mini-redundant power supply with active PFC (PS/2 bracket is available)
