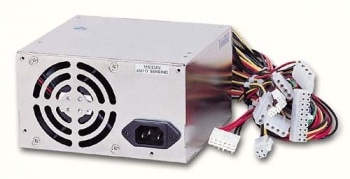

ORION-D4601P

460W PS/2 ATX power supply with active PFC

产品特色

  • PS/2 ATX power supply suitable for 2U and larger chassis
  • Active PFC, full-range input
  • Support Intel® Pentium® 4 processor
  • Max. +5V load output is 20A

规格

Specifications
Input Voltage 90V ~ 264V AC, full range
Input Frequency 47 ~ 63 Hz
Input Current 9A@115V, 5A@230V
Efficiency > 60%
Holdup Time 16 ms at full load
Over Voltage Protection +5V: 5.7 ~ 7.0V; +3.3V: 3.9 ~ 4.5V; +12V: 13.6 ~ 16.0V
Over Power/ Load Protection Output power over 110% ~ 150%
MTBF 100,000 hrs
EMI & Safety Approval UL, TUV
Temperature/ Humidity Operating: 0 ~ 40°C, 20 ~ 90%RH Storage: -20 ~ 60°C, 5 ~ 95%RH
Dimension (WxDxH) 150 x 140 x 86 mm; 5.9” x 5.5” x 3.4”

订购指南

Ordering Guide
ORION-D4601P 460W PS/2 ATX power supply with active PFC
