MEDS-7081

MEDS-7081 is a rugged medical edge AI platform supporting GPUs, VPUs and FPGAs for real-time CT nodule detection and tumor segmentation, with a 900W power supply and advanced thermal management.

MEDS-7081

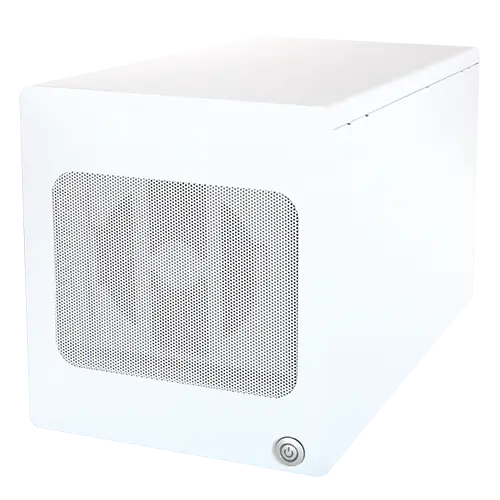

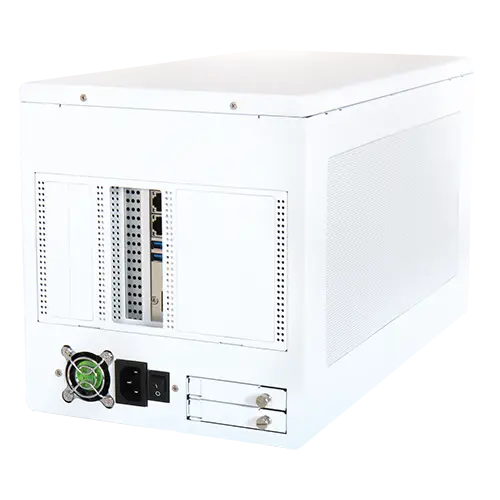

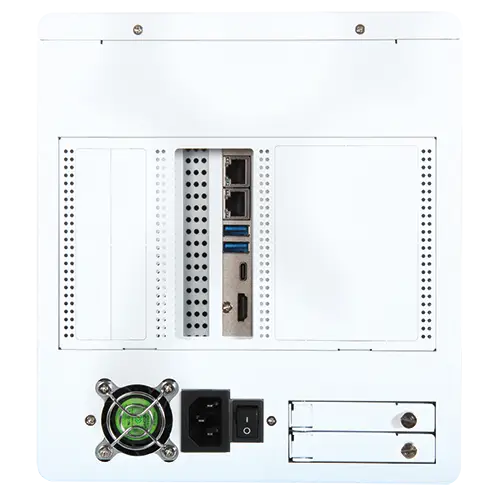

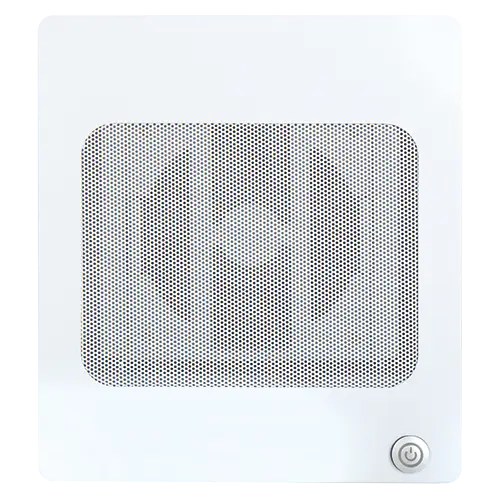

MEDS-7081 - 图片 2

MEDS-7081 - 图片 3

MEDS-7081 - 图片 4

Features

Intel^®14th Generation Core processors
DDR5 SO-DIMM 5600 memory up to 64GB
PCIe x16 slot supports for GPU or FPGA, PCIE x1 slot or PCIE x4 support for video capture and video stream.
Powerful Full-size SBC supporting highperformance CPUs up to 65W
Add-on card solution with modular system design
Streamlined chassis assembly design and innovative thermal solution
Equipped with a 900W medical-grade power supply for enhanced reliability

Model	MEDS-7081
Sys Form Factor	Proprietary

General
Processor	14th Gen Intel^®i3/i5/i7/i9 processor, TDP up to 65W, LGA 1700 socket
Chipset	Intel^®Q670
BIOS	AMI uEFI BIOS
Memory	Support up to 64GB DDR5 5600 MT/s on 2 SODIMM (Non-ECC)
Storage	2 x 2.5″ SSD/HDD
Storage	1 x M.2 Key-M NVMe PCIe x4 2280

System I/O
Ethernet	2 x 2.5 GbE w/ Intel^®WGI226LM
USB	2 x USB 3.2 Gen2 Type A
USB	1 x USB 3.2 Gen2 x2 Type C
Display	1 x HDMI^® 2.0 4096 x 2160@60Hz
Other	Power Button, Power LED

Expansion I/O
PCIe	1 x Gen5 x16 slot with PCIe x16 signal,
	1 x Gen3 x4 slot with PCIe x4 signal,
	1 x Gen3 x1 slot with PCIe x1 signal,
M.2	1 x M Key w/ 2280 PCIe x4

ME/Environment
Dimension (WxDxH)	210 x 403 x 234 mm (8.27″ x 15.87″ x 9.21″ )
Weight	10.1 kg
Power Supply	AT mode/ ATX mode
Mounting	Desktop
Operating Temperature	0 ~ 40 °C (32.0 ~ 104.0 °F)
Storage Temperature	-40 ~ 80 °C (-40.0 ~ 176.0 °F)
Relative Humidity	5% to 95%, non-condensing
Certification	CE, FCC Class B Part18, IEC/EN 60601-1
OS	Windows 11 IoT Enterprise
