| System | |
|---|---|
| Processor | Intel® Core™ i3-7100U,QC, 2.30 GHz, 15 W Intel® Core™ i5-7300U, QC, 2.40 GHz, 15 W |
| Memory | 2x Dual Channel SO-DIMM DDR4 2133 MHz up to 32GB |
| Storage | 1x SATA III port M.2 SSD 2260 (64/ 128GB) |
| BIOS | AMI uEFI BIOS 64MB |
| Expansion | 2x M.2 Key E (Supports 2230) Key M (Supports 2260) |

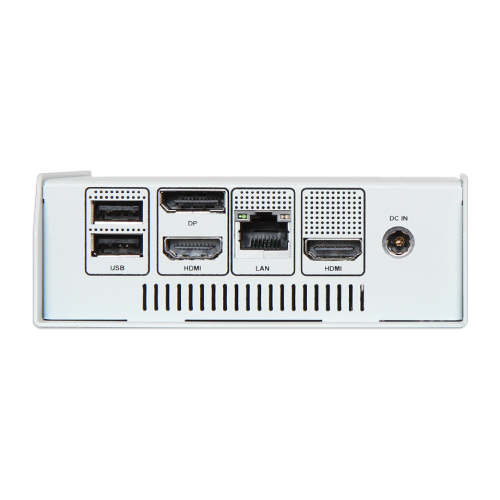

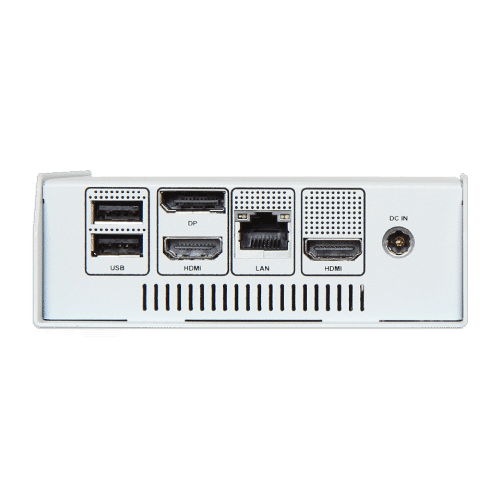

| I/O Interface | |
| Serial Port | N/A |

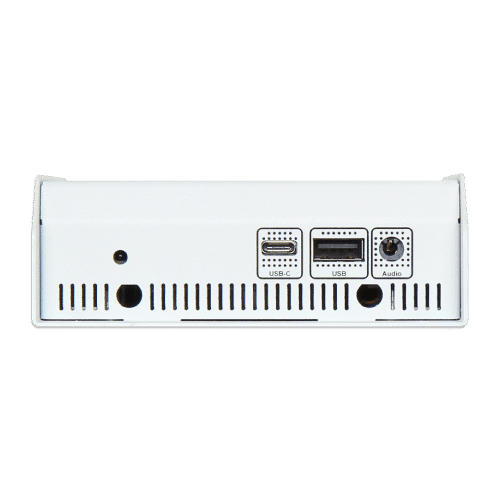

| USB | 3x USB 3.0 (Type-A) 1x USB 3.1 (Type-C) |
| Audio | 1x Line-in/Line-out |
| Ethernet | 1x RJ-45 connector LAN |
| Display | 1x DP up to 4096×2160 2x HDMI® up to 3840×2160 |
| Power Supply | |
| Power Input | DC 12V~19V input |
| Mechanical & Environmental | |
| Operation Temperature | 0°C ~ 35°C |
| Storage Temperature | (- )40°C ~ 70°C |
| Dimension | 113(W)x44(H)x135(D)mm |
