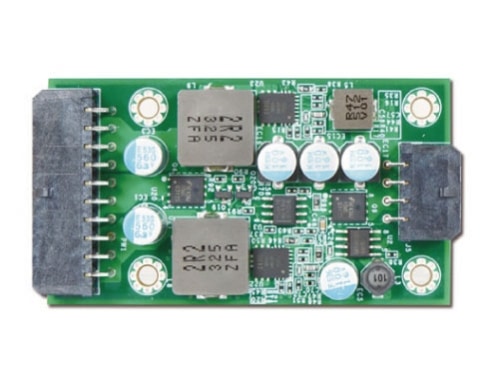

GADIWA-B1120 is a DC to DC 12V input board type converter. It normally support continuous 120 Watts and peak 160 Watts.
GADIWA-B1120 can save more space, less than 1U width, and cost. It’s not only capability for fan-less system but also suitability for different applications. Besides, the converter is made and tested by automatic production line;therefore, it can provide high quality and better performance.
| Input Voltage | Voltage 12V (+5%/-4%) |
| Output | 120Watts/ 160Watts peak |
| Efficiency | >90% @ 12V |
| MTBF | 1,226,530hrs @40°C, 353,098hrs @75°C |
| EMI & Safety Approval | CE, FCC |
| Input Connector | Mini-Fit 8 pin (P/N: B6902040) |
| Output Connector | Mini-Fit 20 pin (P/N: B6902071) |
| Dimension (WxDxH) | 38 x 68 x 12.5 mm |
| Operation Temperature | -40°C ~ 75°C |
| GADIWA-B1120 120W DC/DC 12V/input.ATX/output.Wide Temperature.Board Type Converter |
